Amol Tourism Centre

Waterside view beneath the repeated structural arches
Location
Amol, Iran
Typology
Landscape & leisure
Contribution
Masterplan & architectural proposal

The tourism centre in Amol has an allocated budget of approximately 680 billion rials. Its site covers around 11 hectares, of which 35,000 square metres are assigned to parking. Eight separate parking areas provide 1,376 spaces. The built footprint is 19,953 square metres. The fuel station is positioned so that travellers can use it without entering the complex.

The programme includes a play area, kitchen, storage, prayer space, an 800-person banquet hall and a flexible 485-person hall for theatre, exhibitions, cinema and conferences. There are indoor and outdoor restaurants, a café and 129 sleeping places in tents and two- or four-person cabins, each with its own outdoor space. The remaining covered areas accommodate general services.

A recirculating watercourse runs through the site. Beside the commercial centre it widens into a small lake for boating, forming part of the continuous water route along the complex’s covered spaces.

Landscape and public space

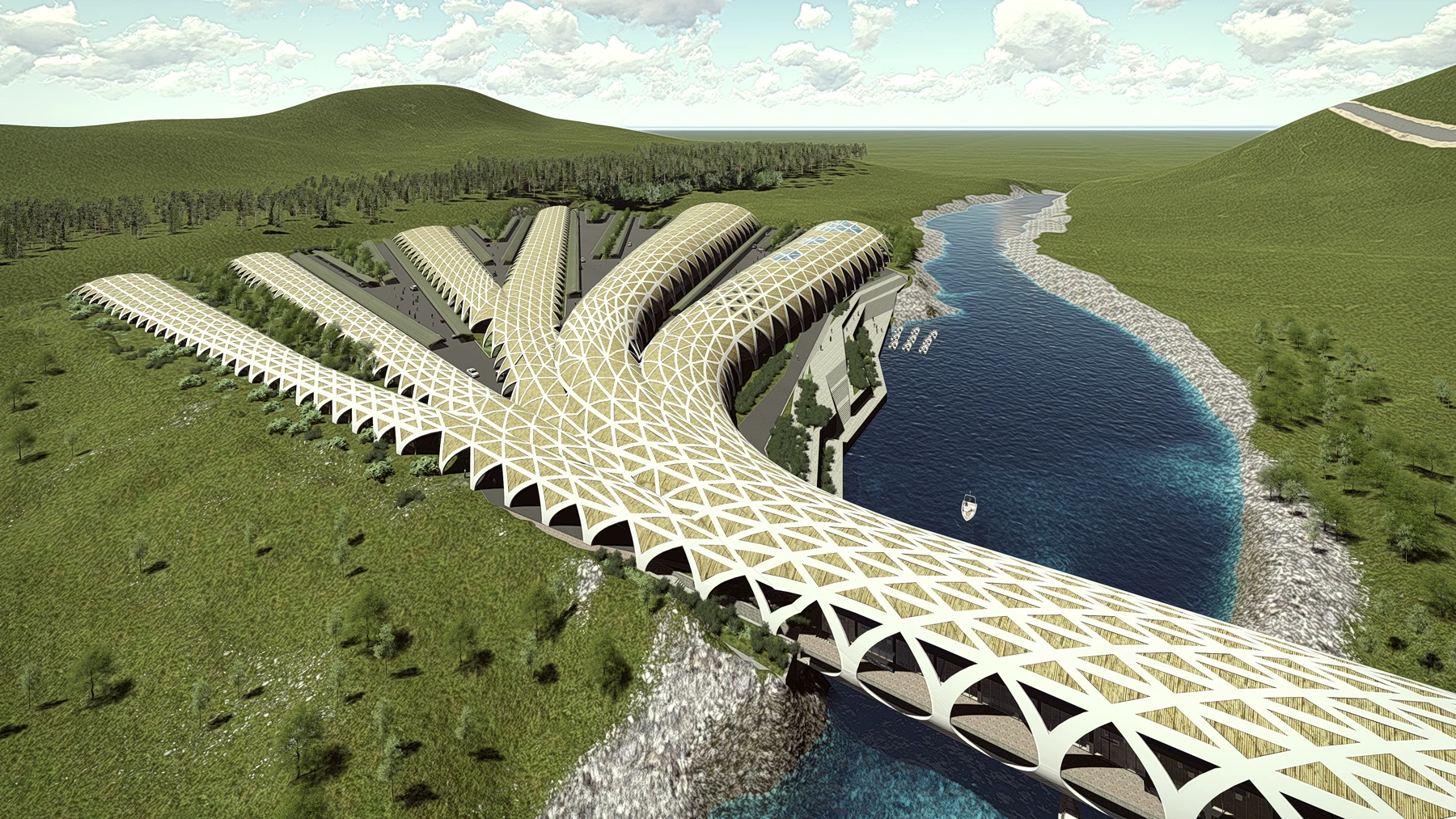

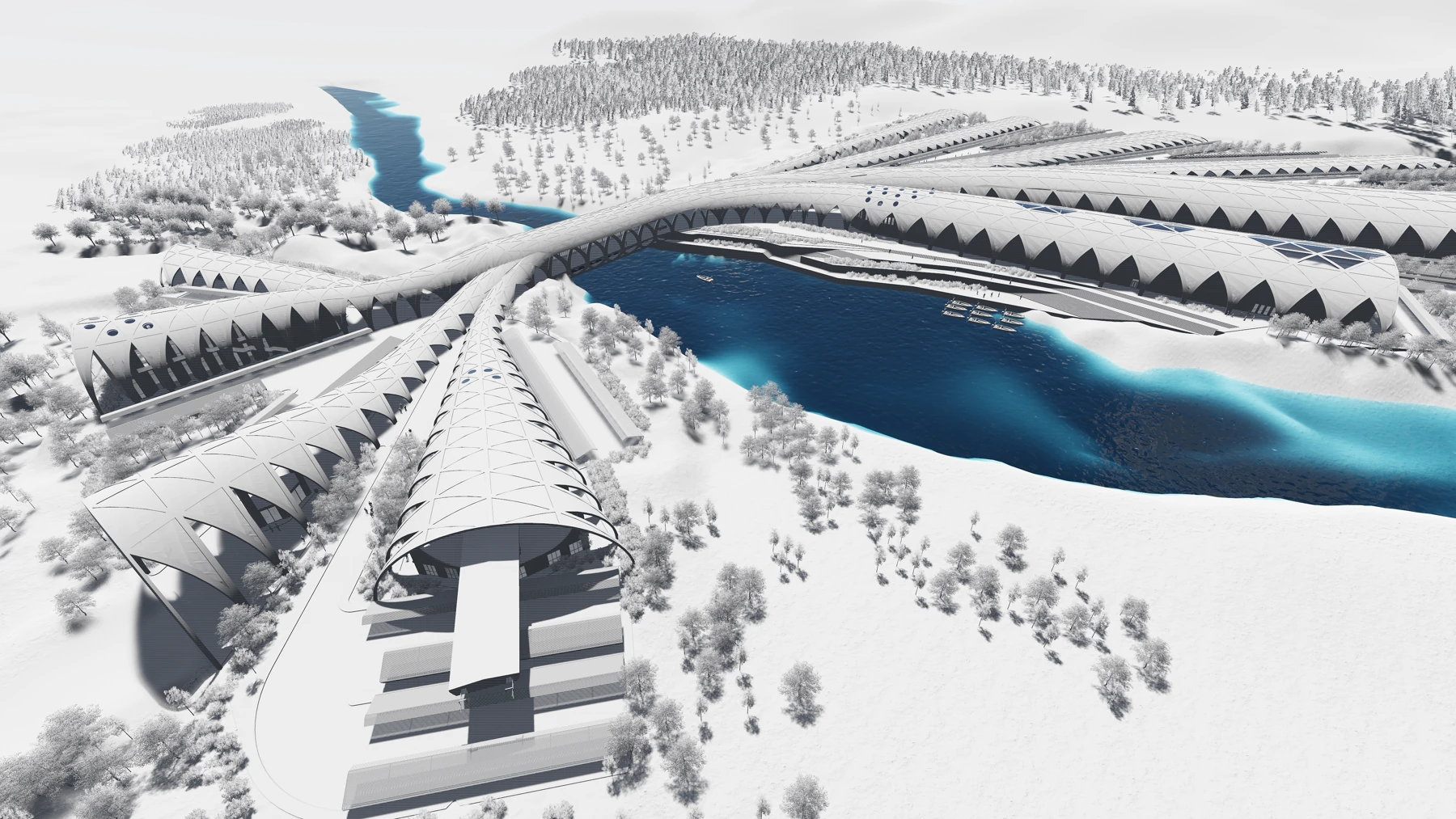

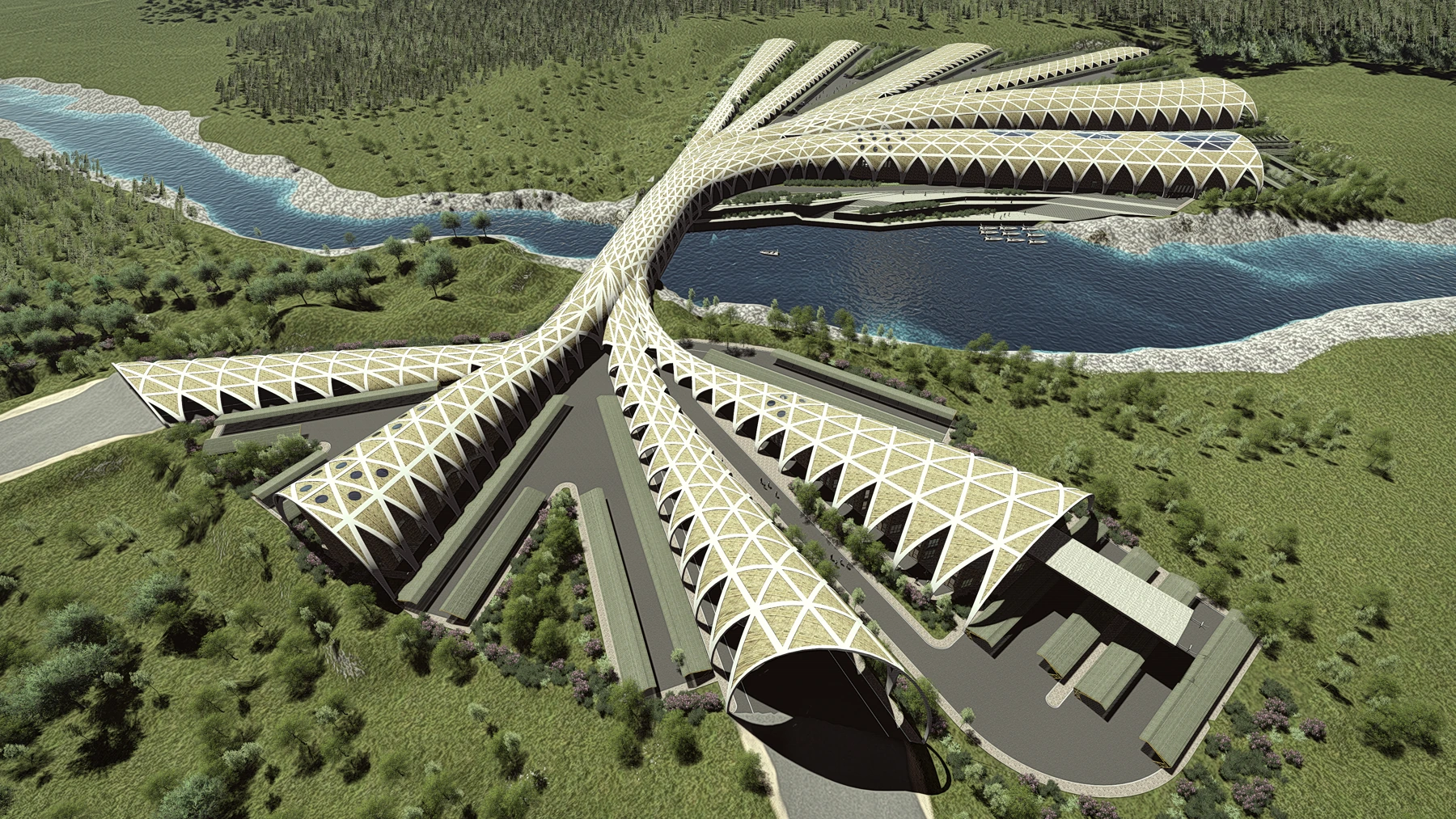

Aerial view of the branching complex and water
Branching roof forms set within the landscape
Roof geometry and its relationship to the shoreline

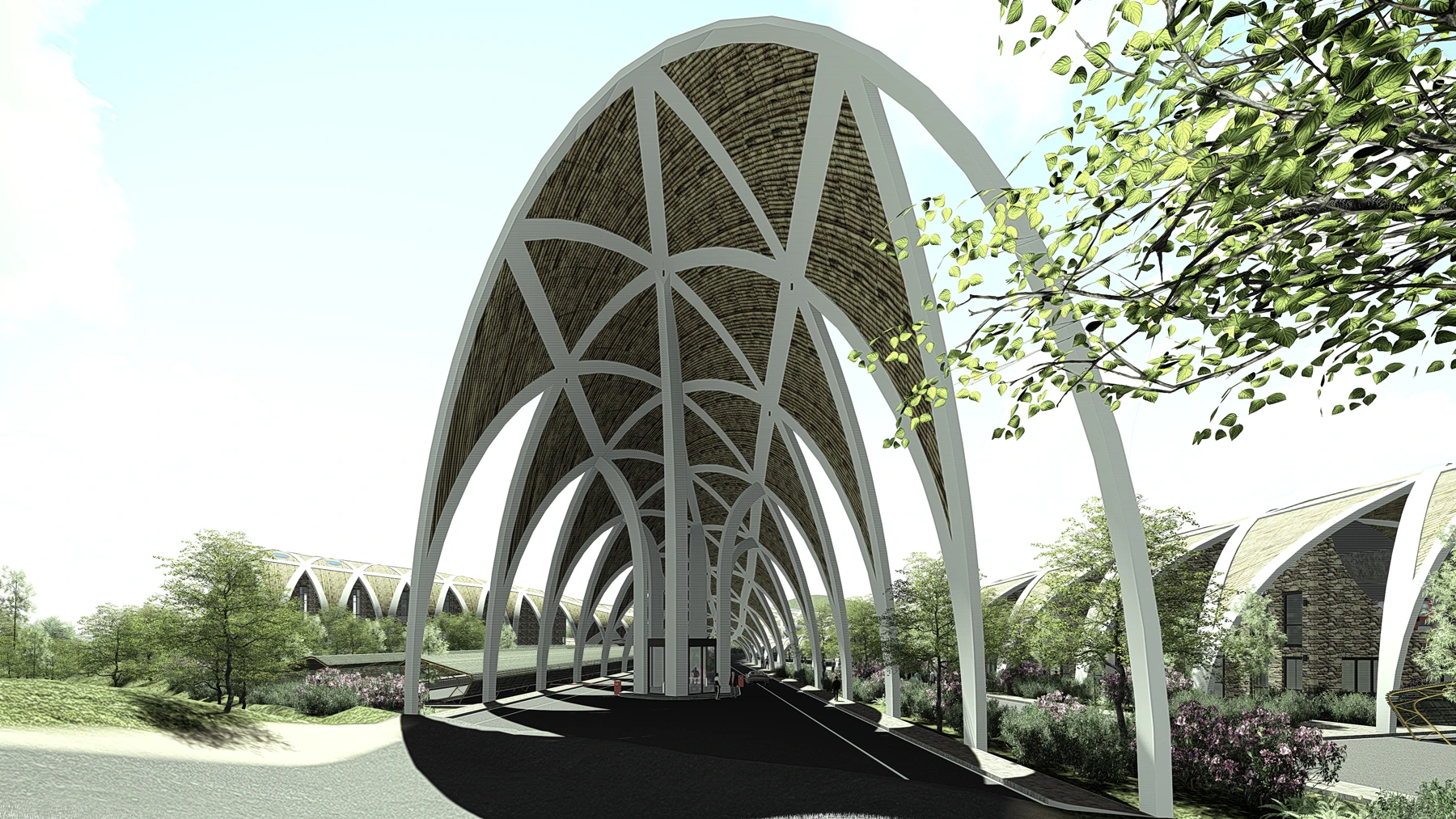

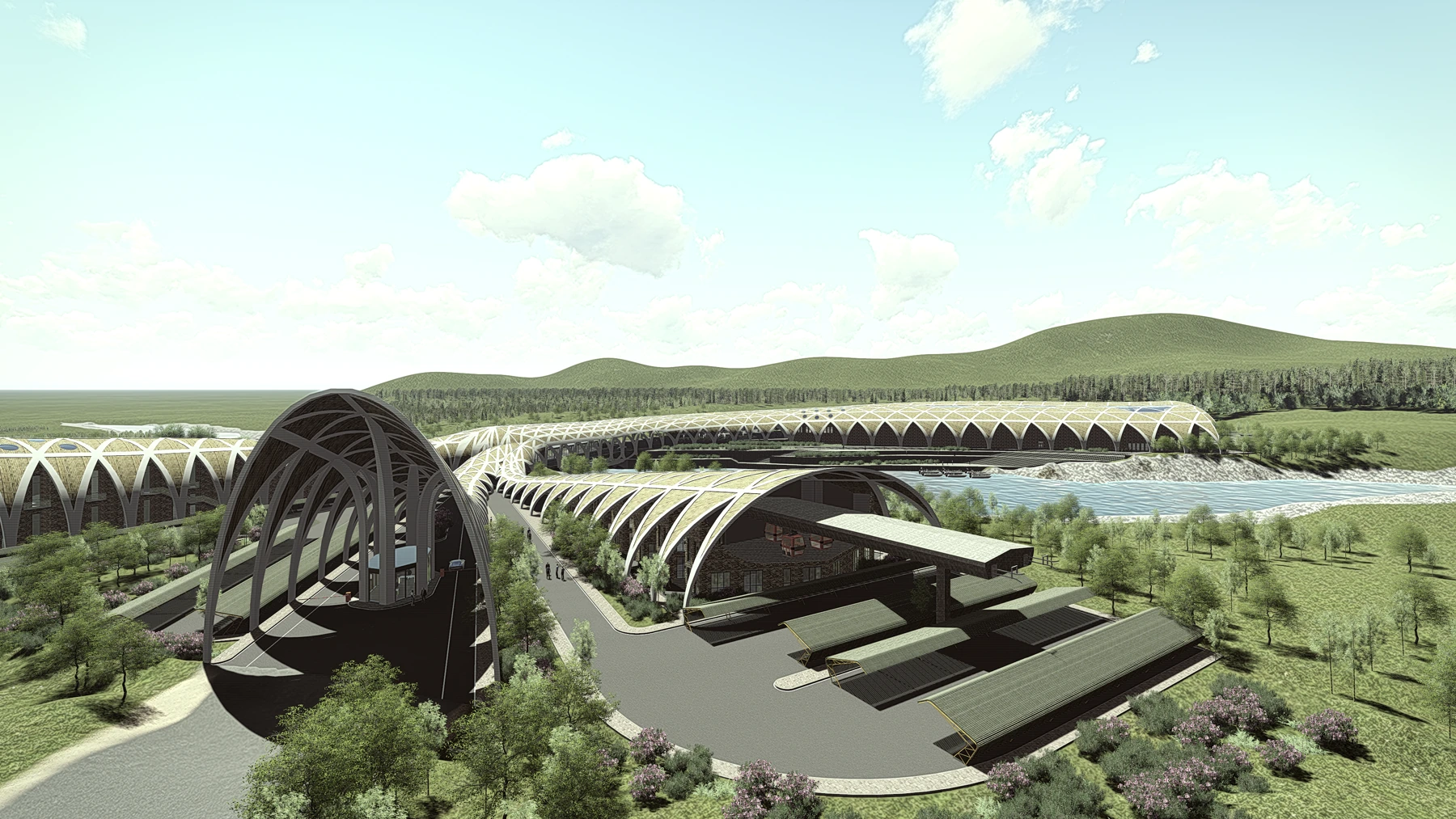

Covered entrance framed by a sequence of arches

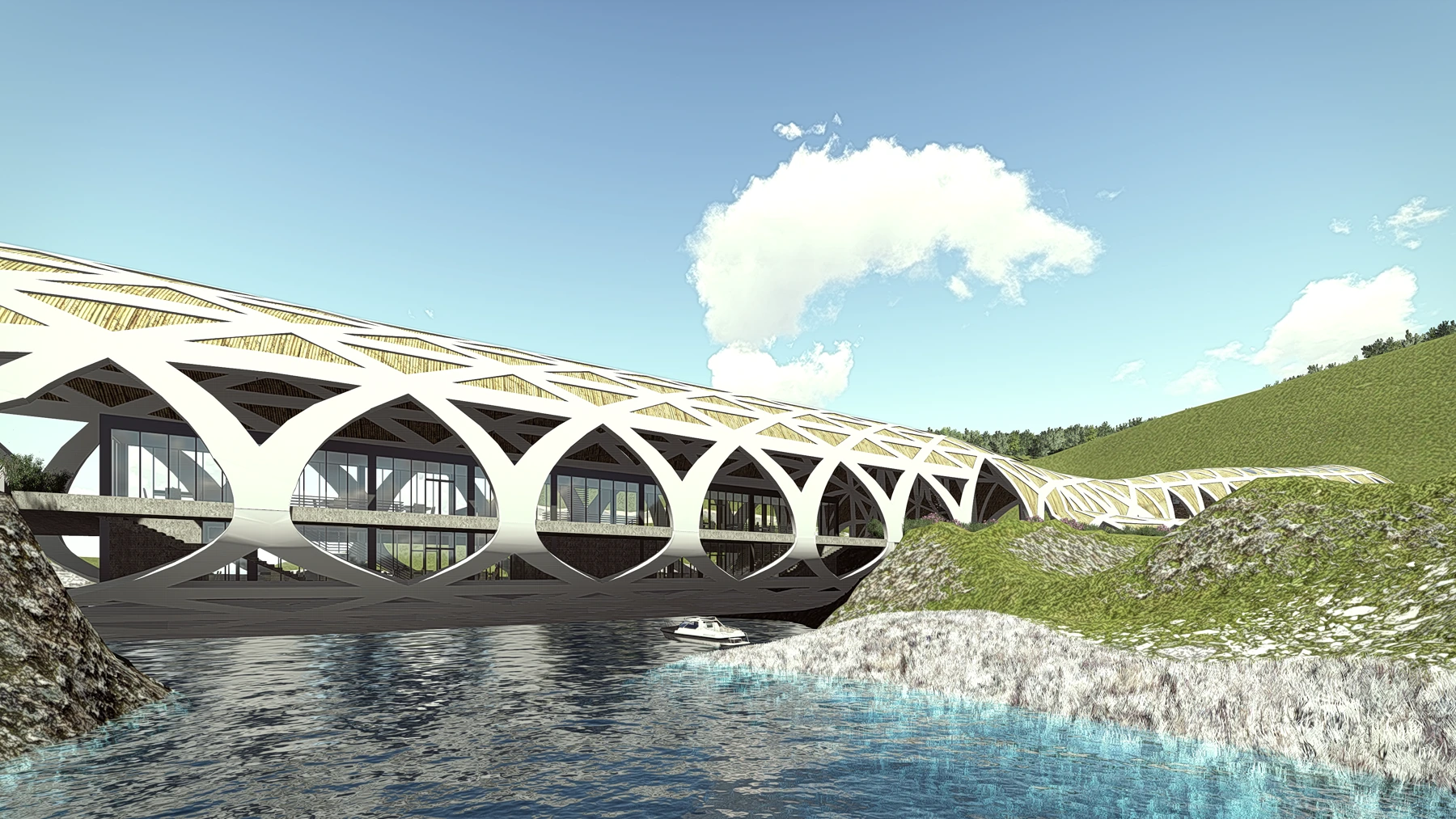

Arched enclosure along the water’s edge

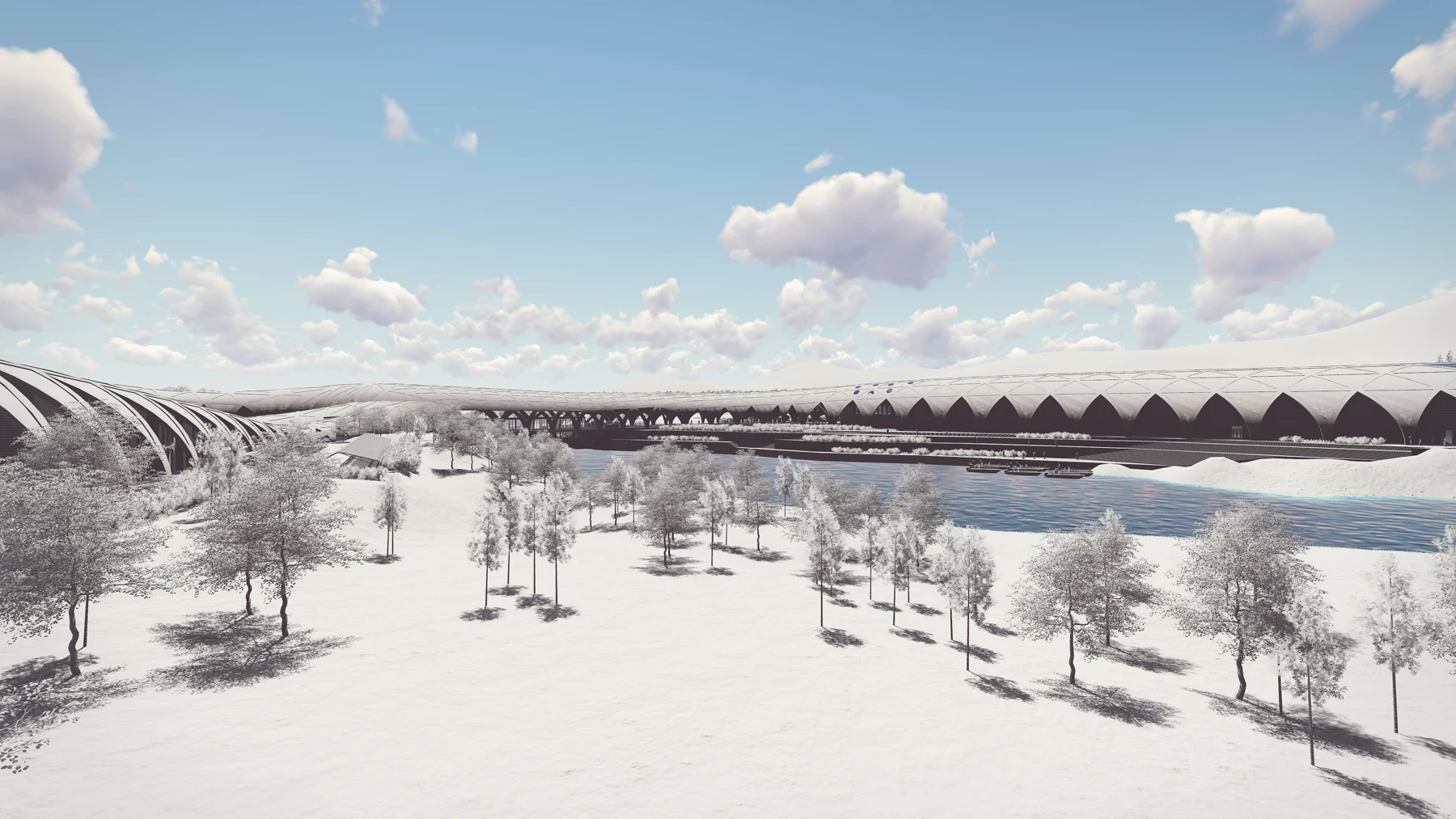

Landscape-level view of the complex across the water

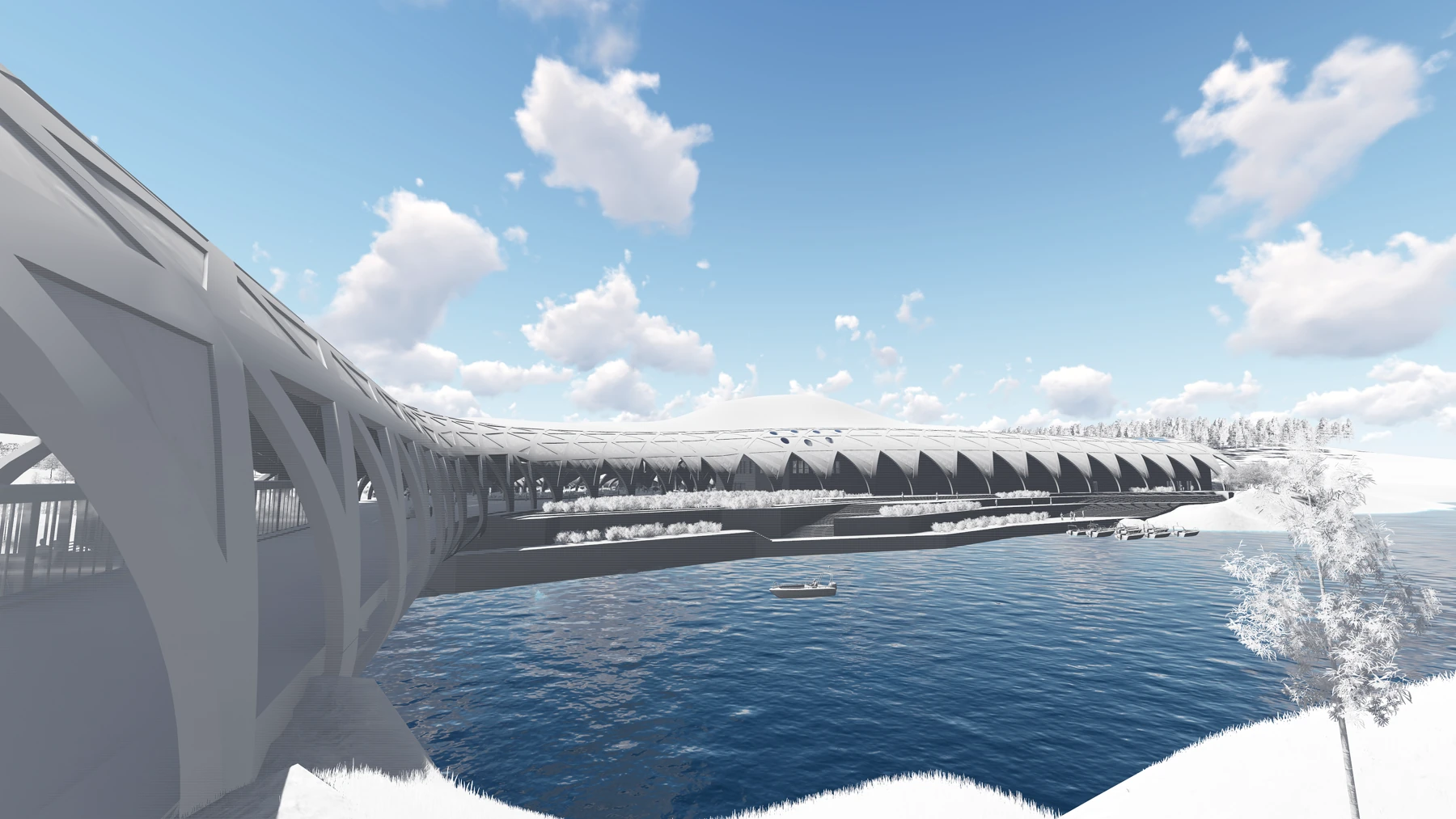

View along the water towards the opposite wing
Overall massing study with water and tree planting

Plans and spatial organisation

Site plan: access, landscape and station footprint
Setting-out grid and coordinates

Design development

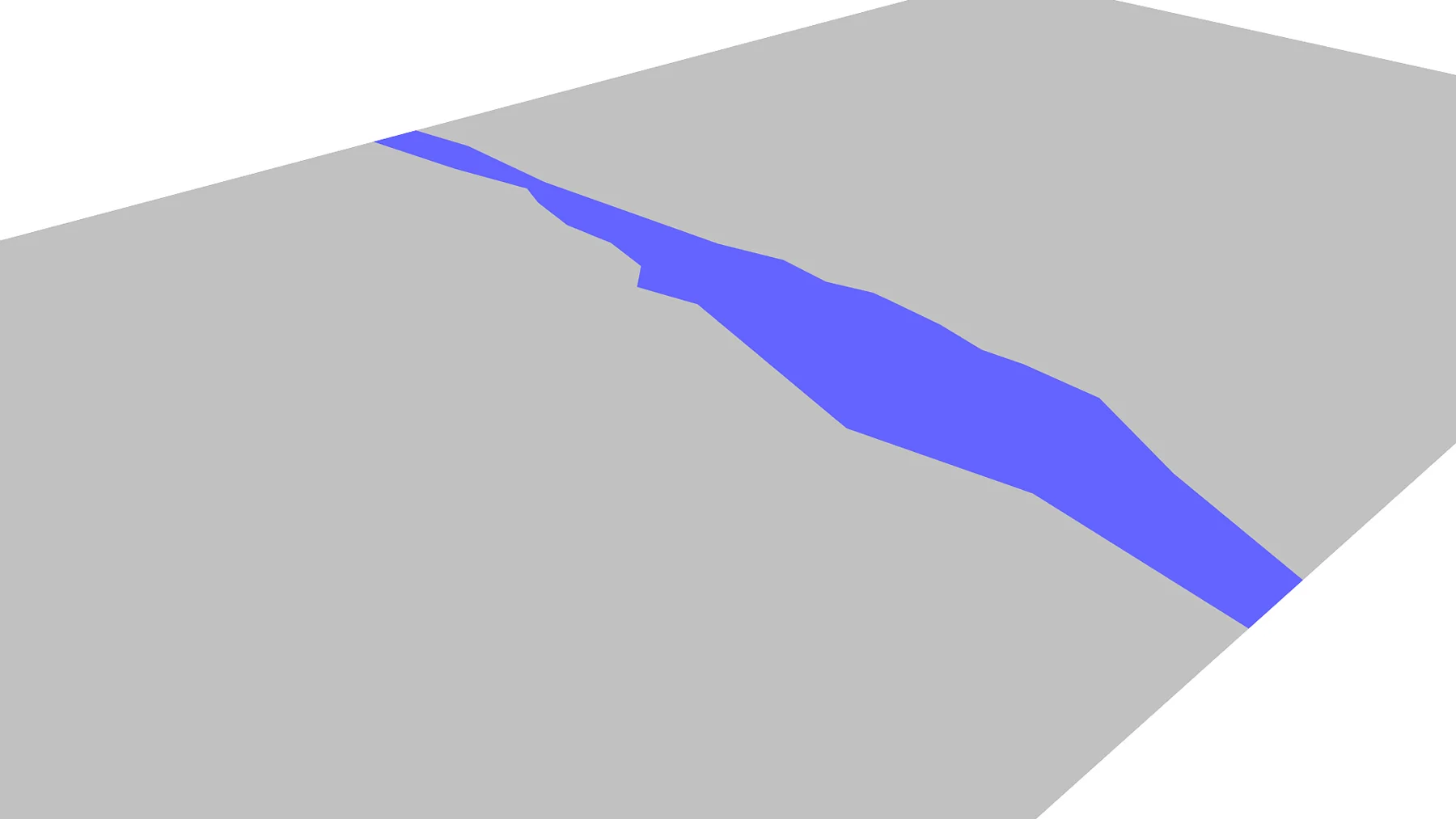

Concept development — stage 1

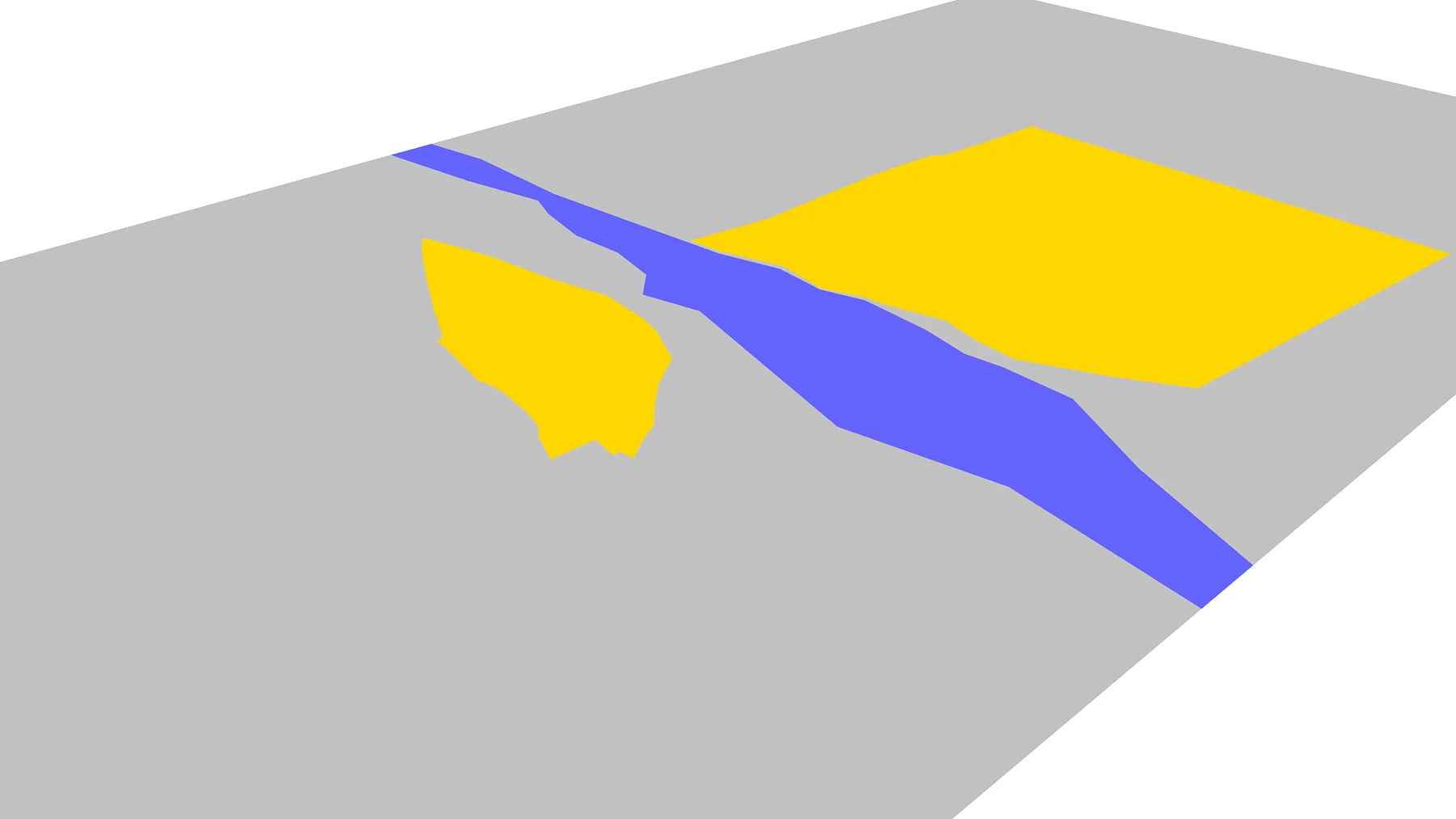

Concept development — stage 2

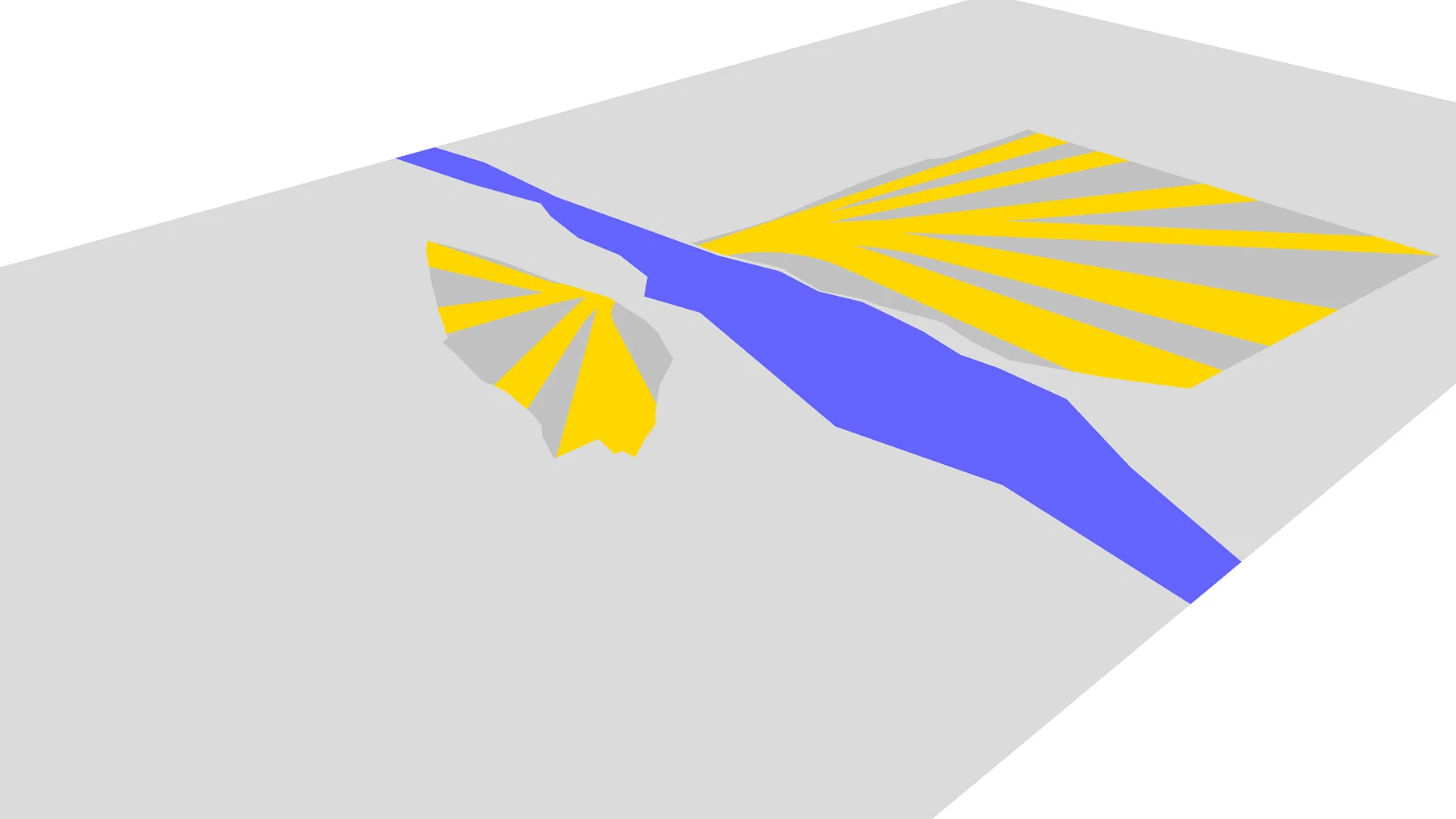

Concept development — stage 3

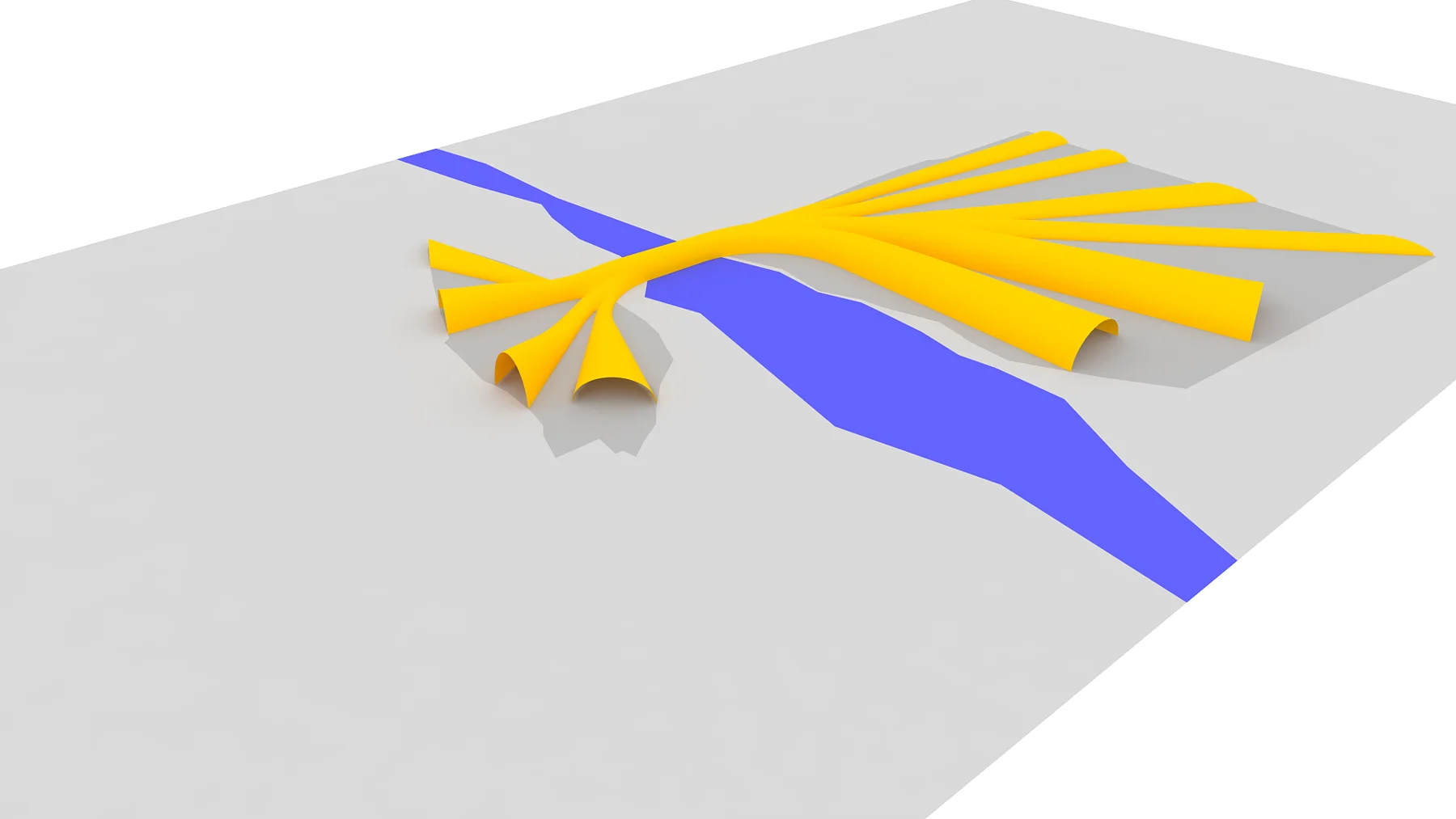

Concept development — stage 4

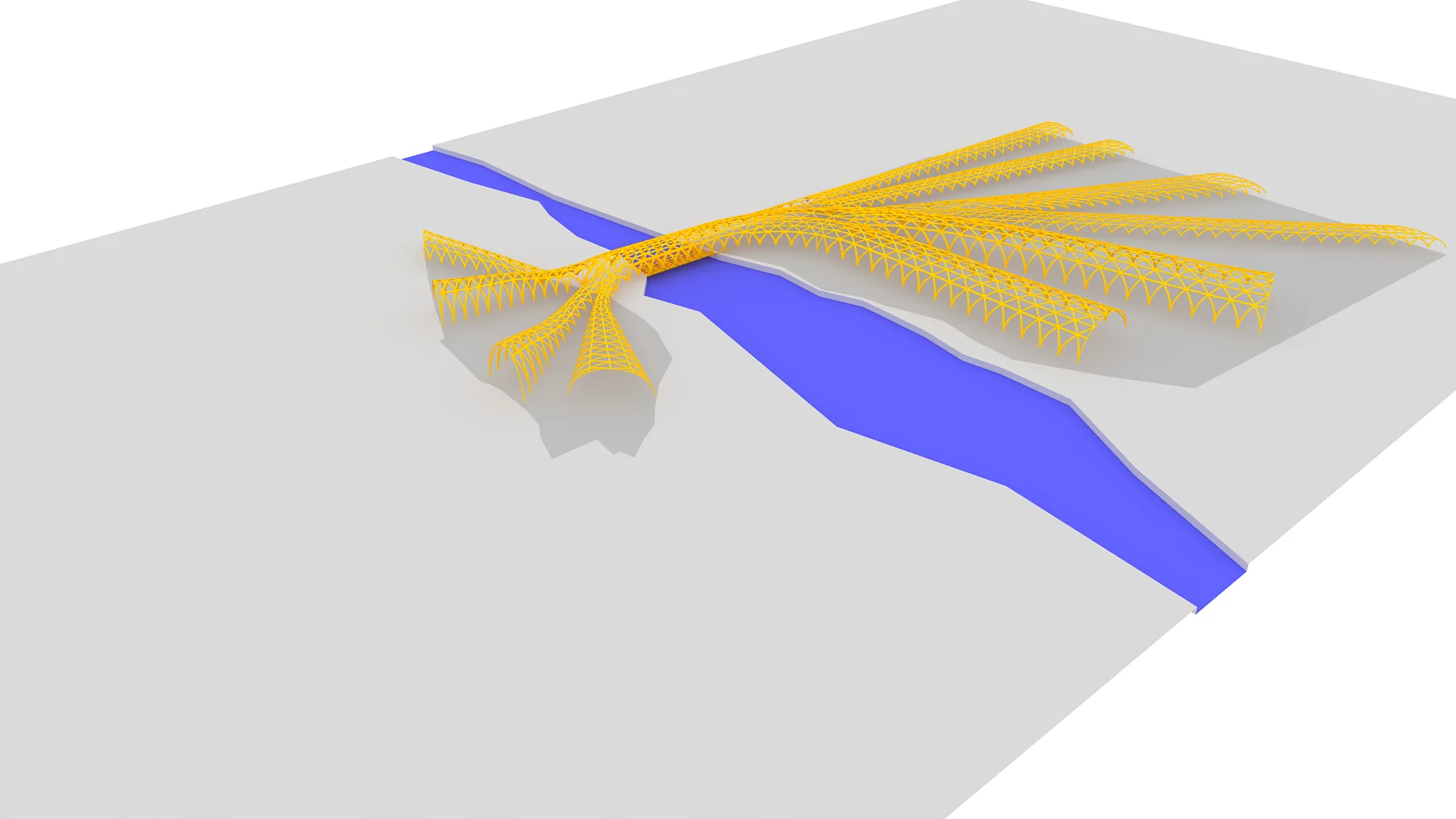

Concept development — stage 5

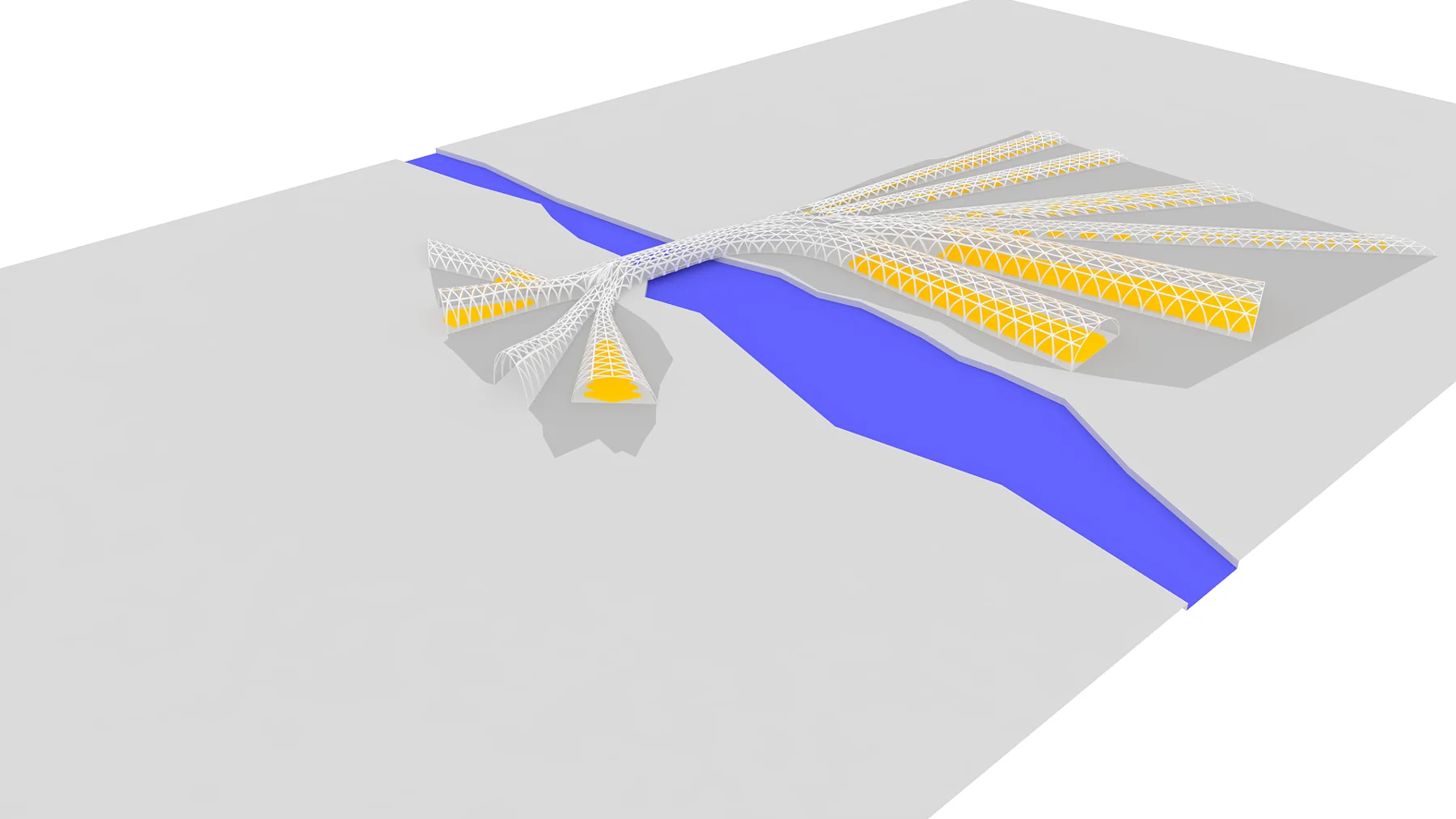

Concept development — stage 6

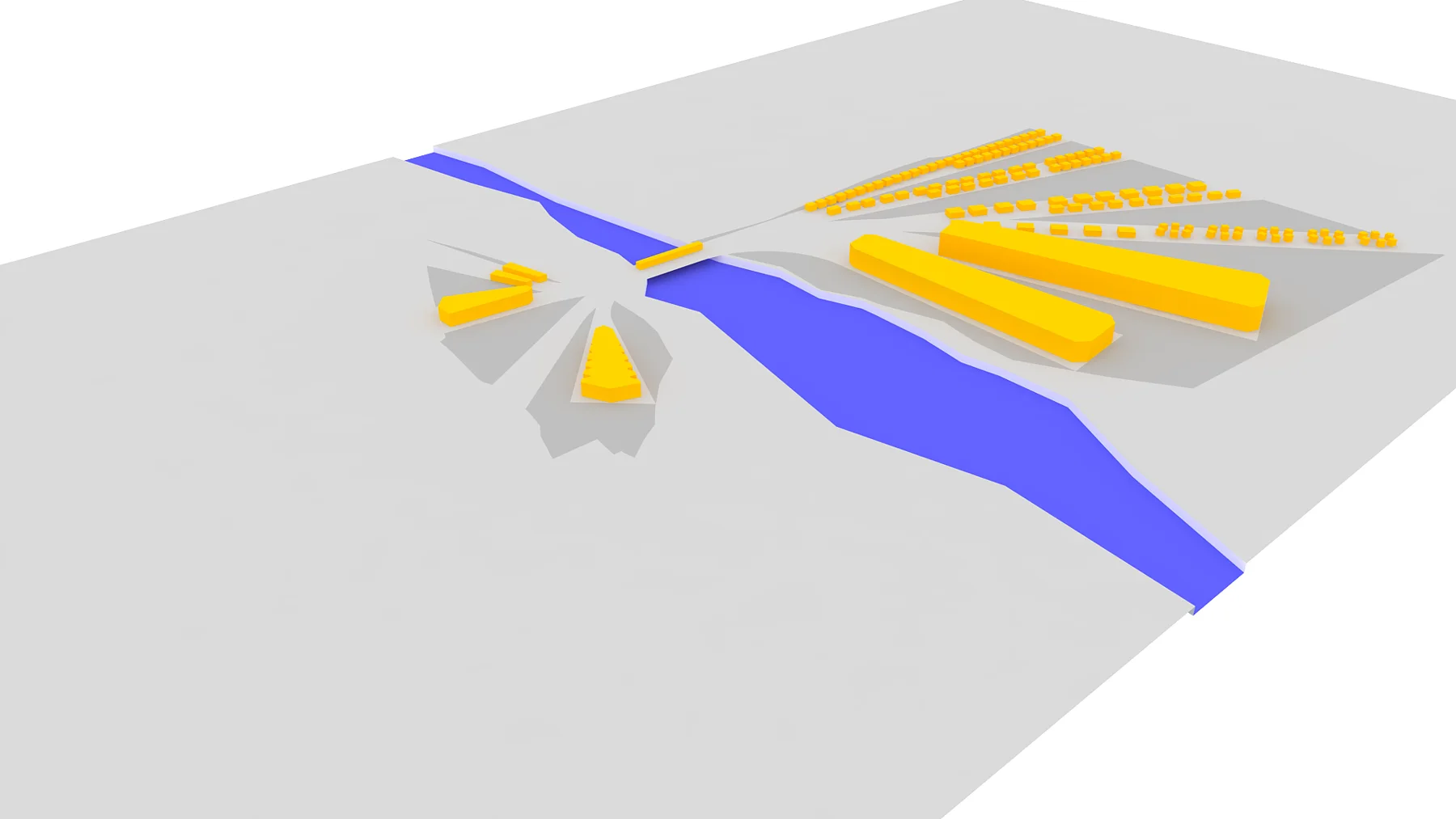

Concept development — stage 7
Amol Tourism Centre / Walkthrough
