Ghazvin Glass Company

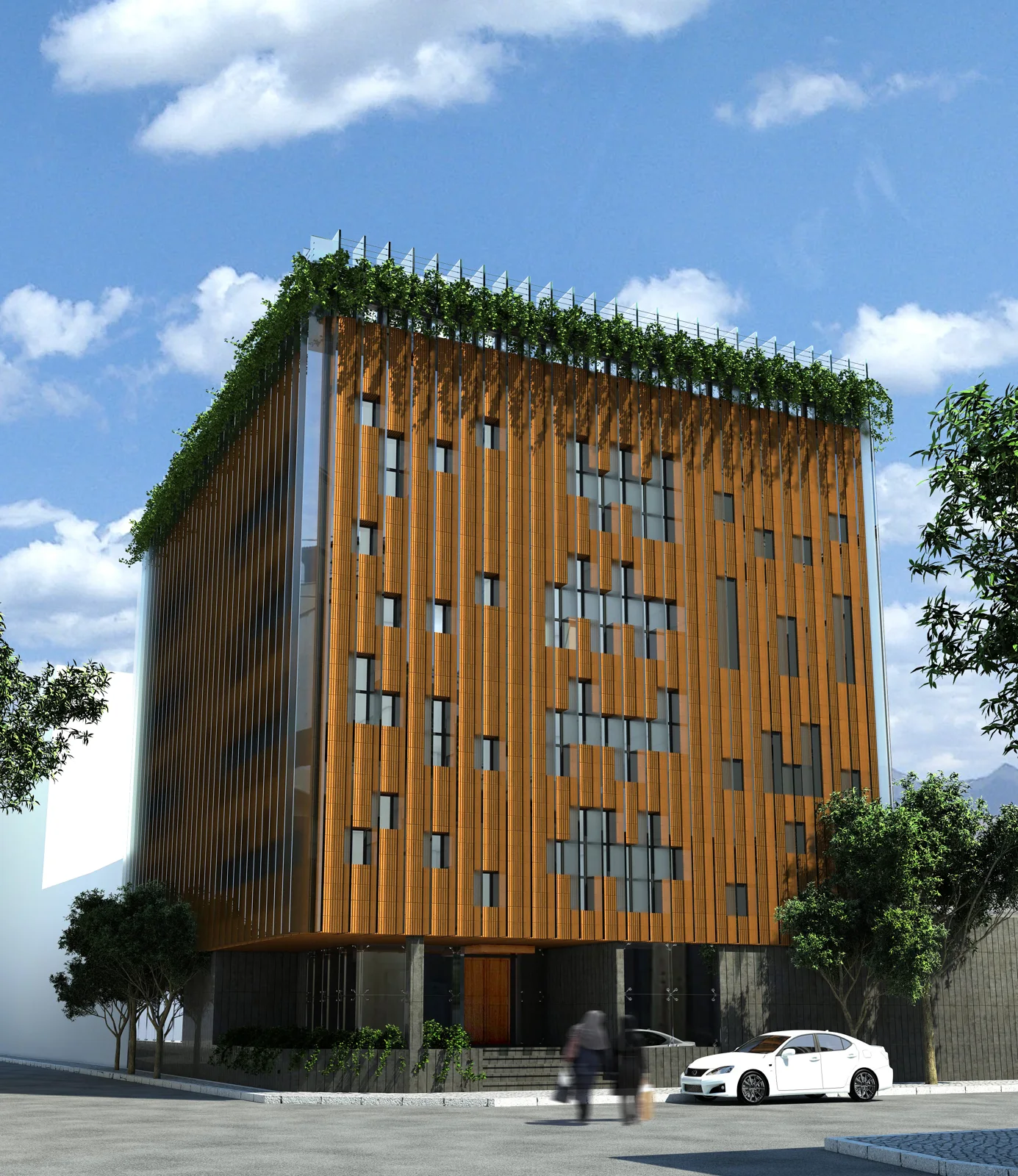

Office façade with vertical screens and roof planting
Location
Qazvin, Iran
Typology
Workplace
Contribution
Architectural design proposal

The project was prepared for a design competition for a new building. The design process had to respond directly to the competition brief and the client’s requirements as a glass manufacturer of established standing. It also had to take account of planning regulations and the requirements of Qazvin municipality, including a provision that glass should cover 30 per cent of the façades.

Tempered-glass panels are used on the façade to express transparency and make the building volumes appear lighter. Exposed brick walls divide and frame the glazed surfaces. The main idea is a brick volume broken up by strips of glass, bringing together two materials: one rough and traditional, the other transparent and modern.

The glazed areas allow views into the building. The composition of brick and glass gives the building a distinct presence both during the day and at night.

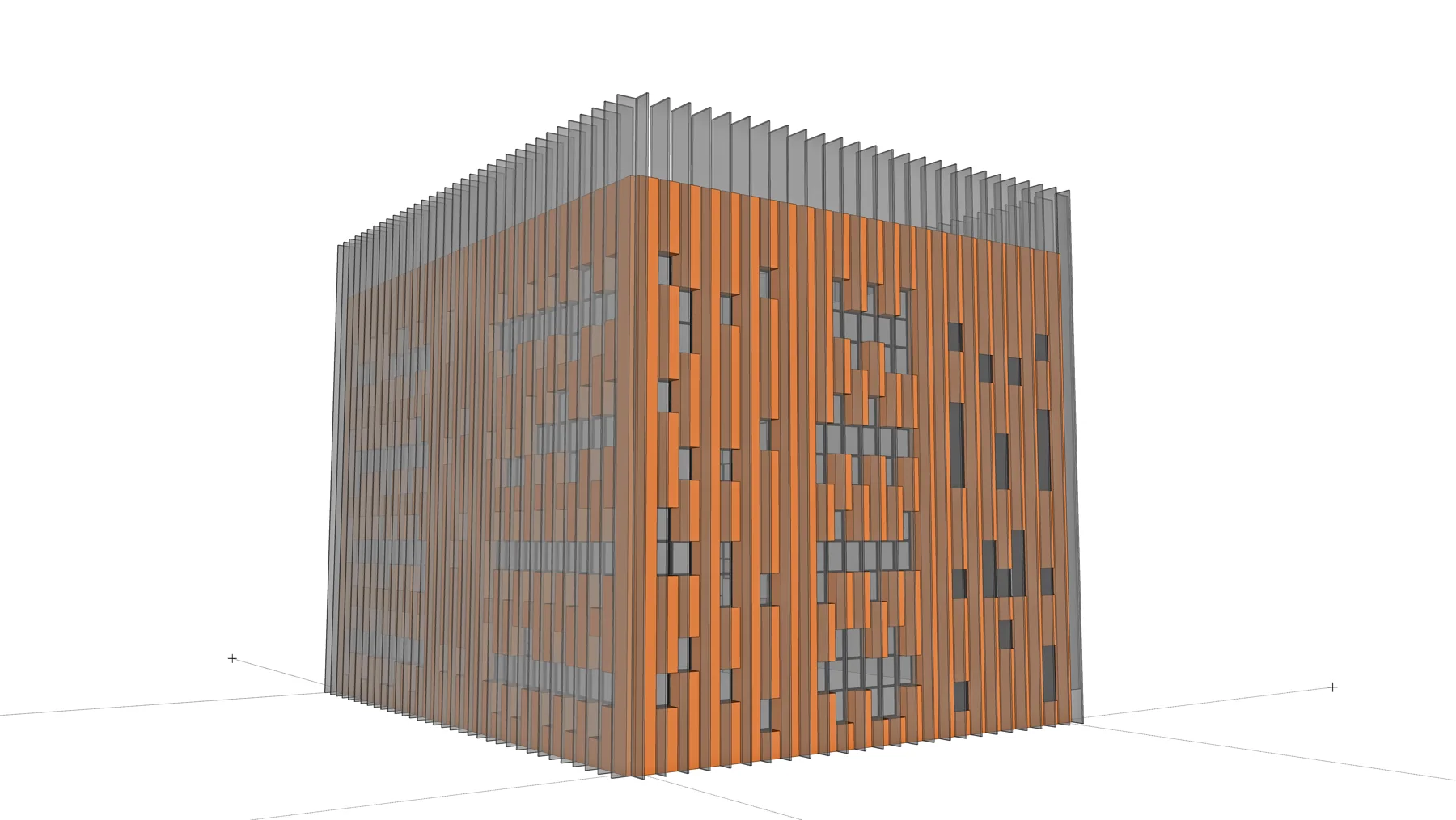

Façade study with vertical fins extending above the roof

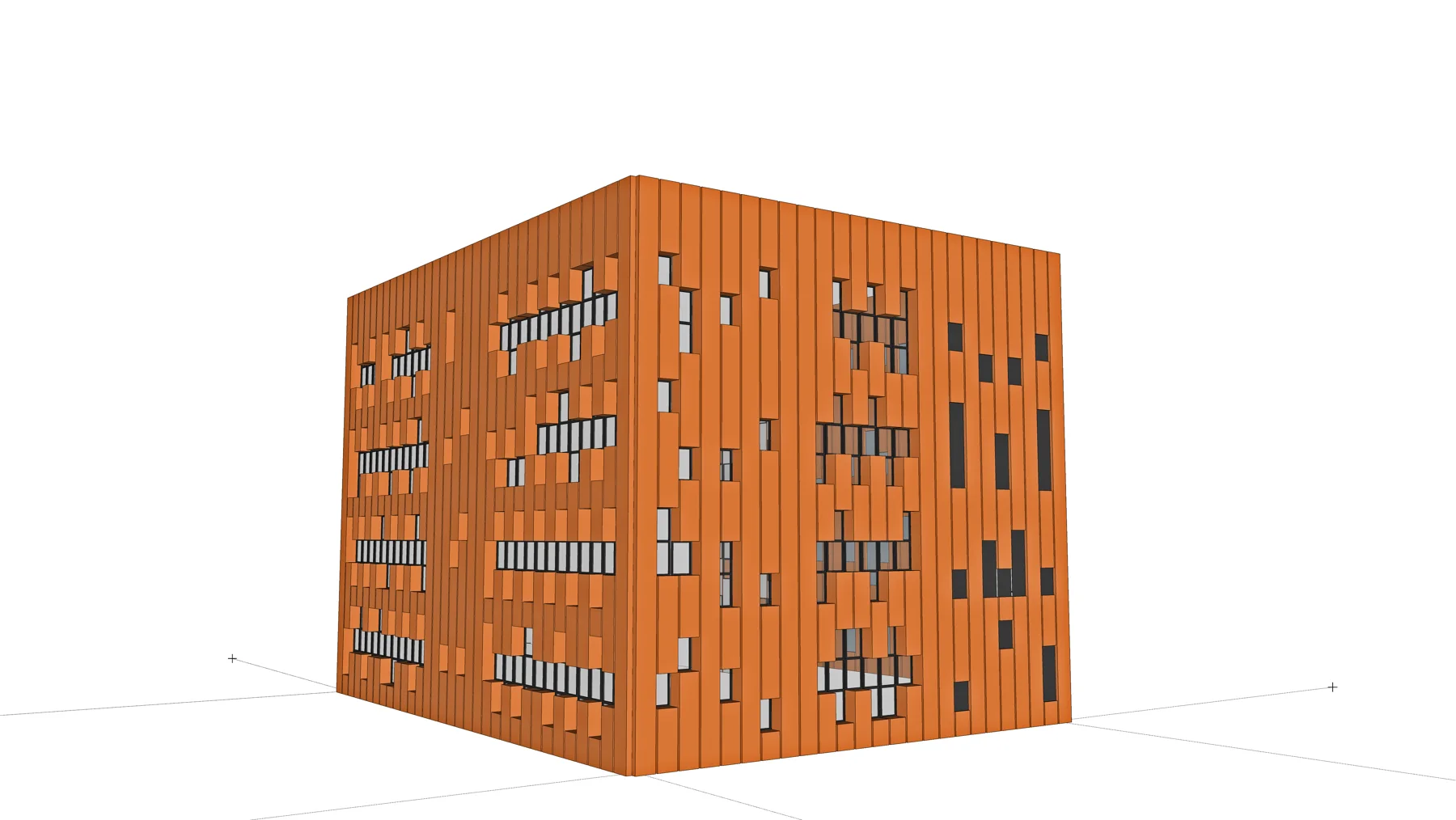

Window pattern within the solid façade volume

Architecture

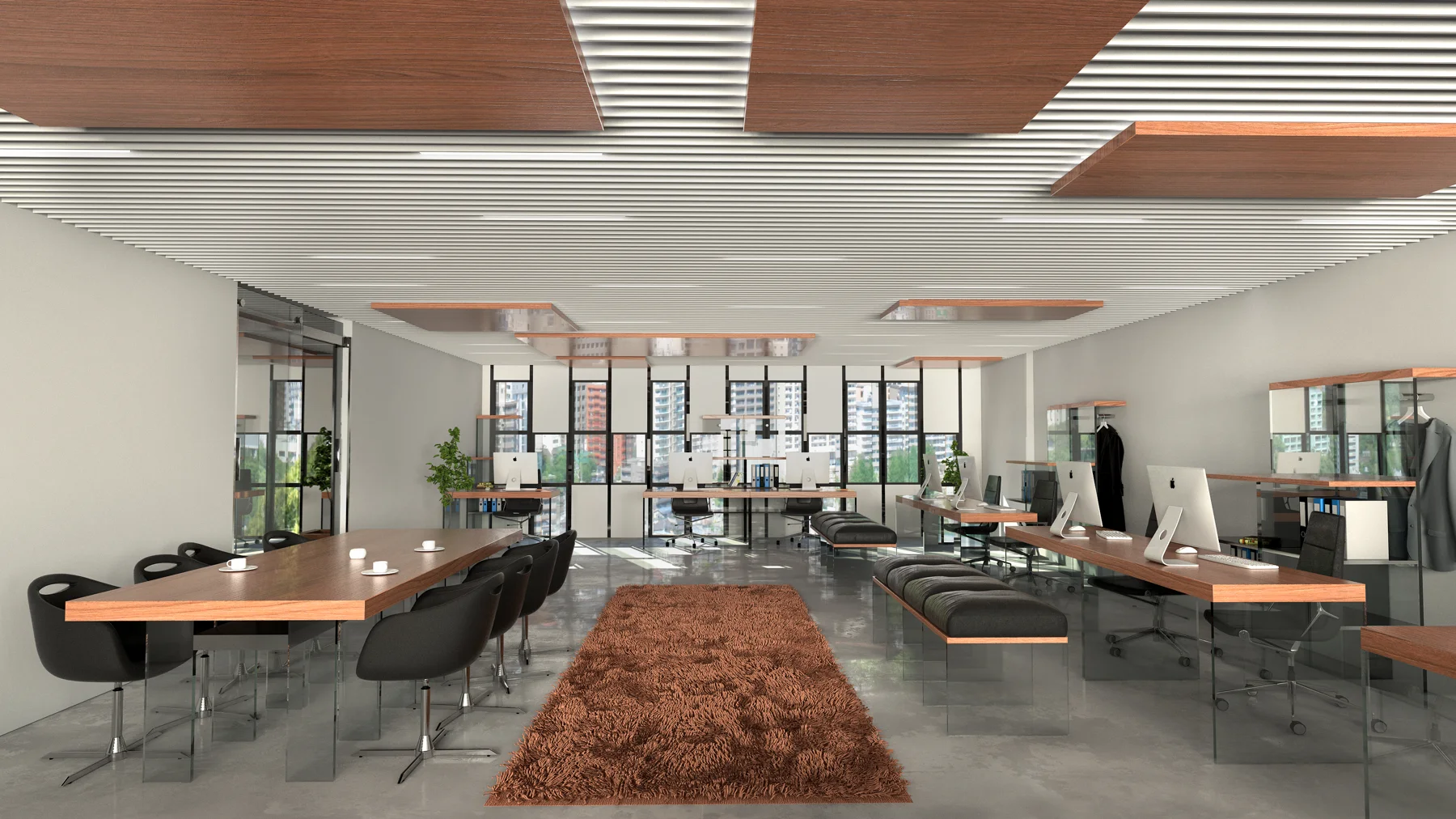

Shared office with desks and linear ceiling elements

Design development

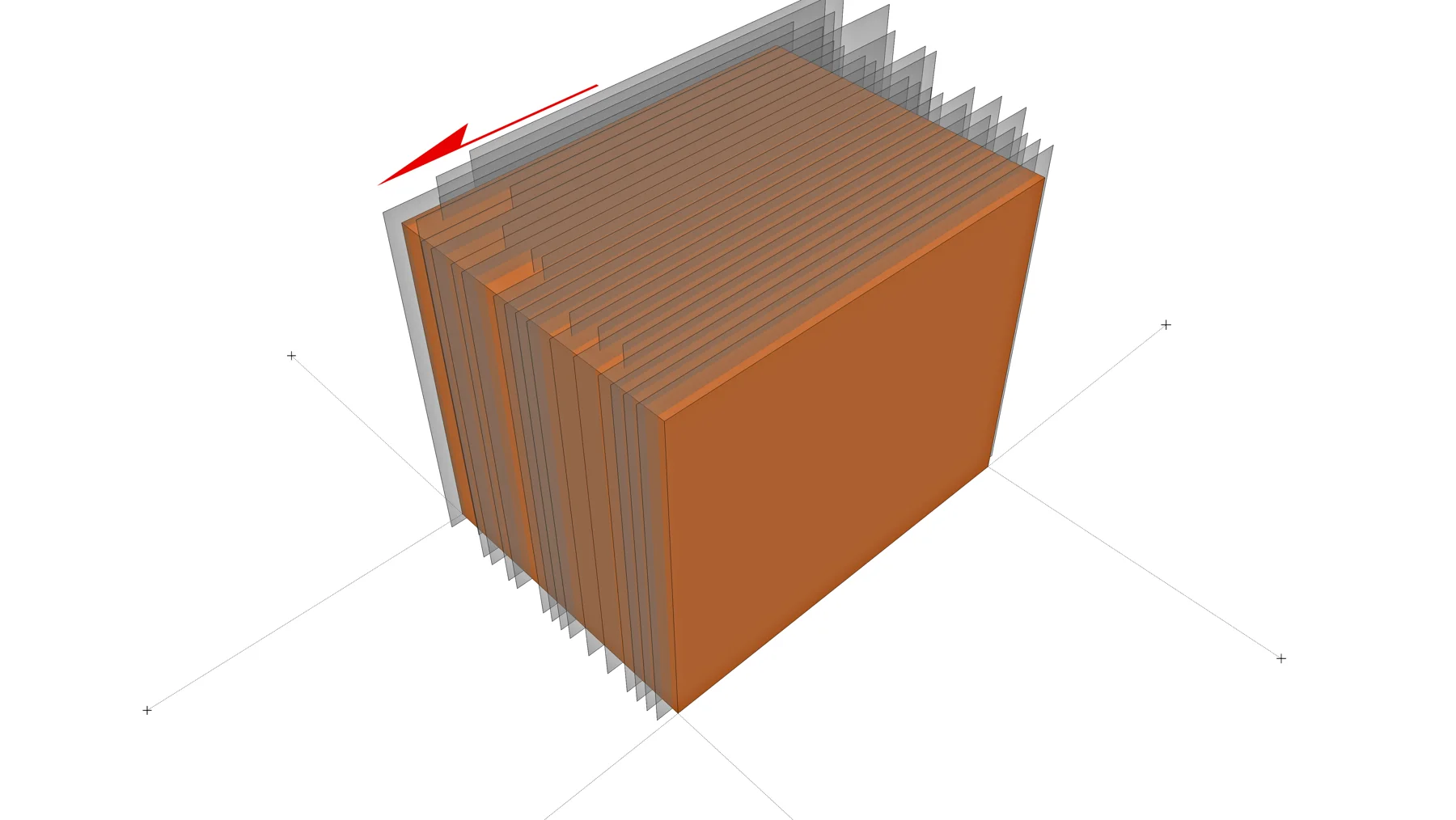

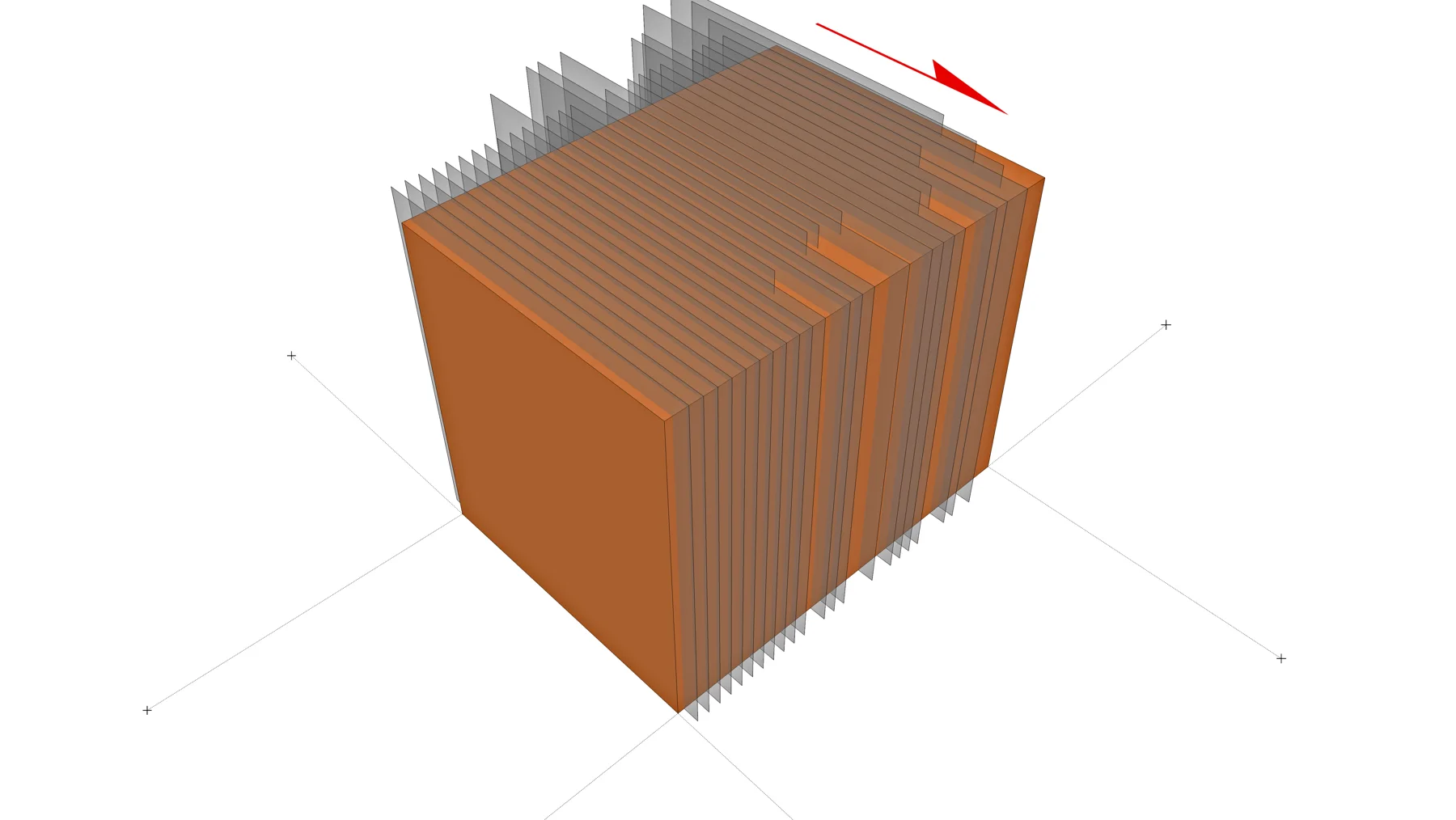

Diagram of repeated façade planes and their displacement
Alternative view of the shifted façade planes

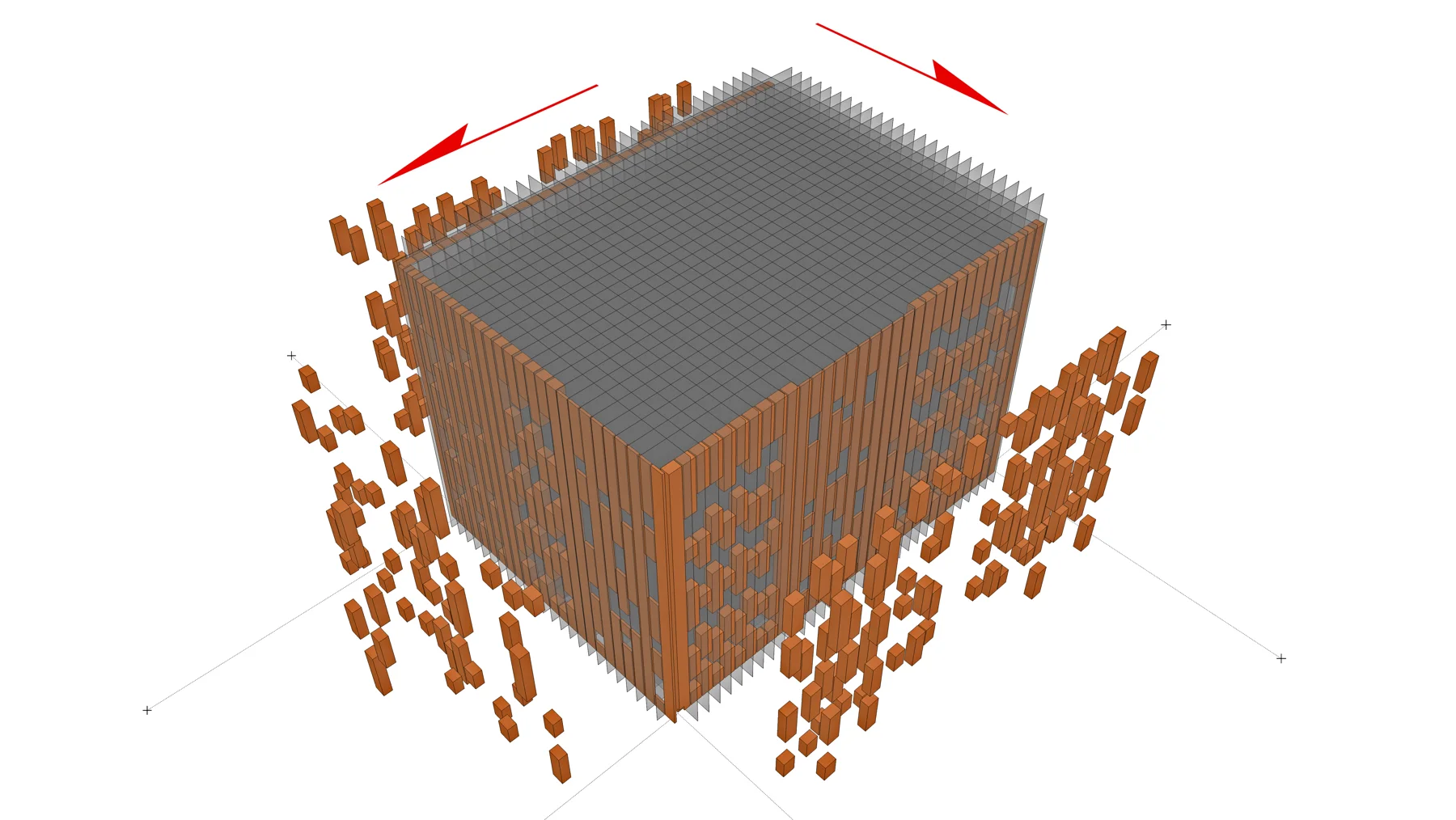

Exploded diagram of the façade’s smaller elements

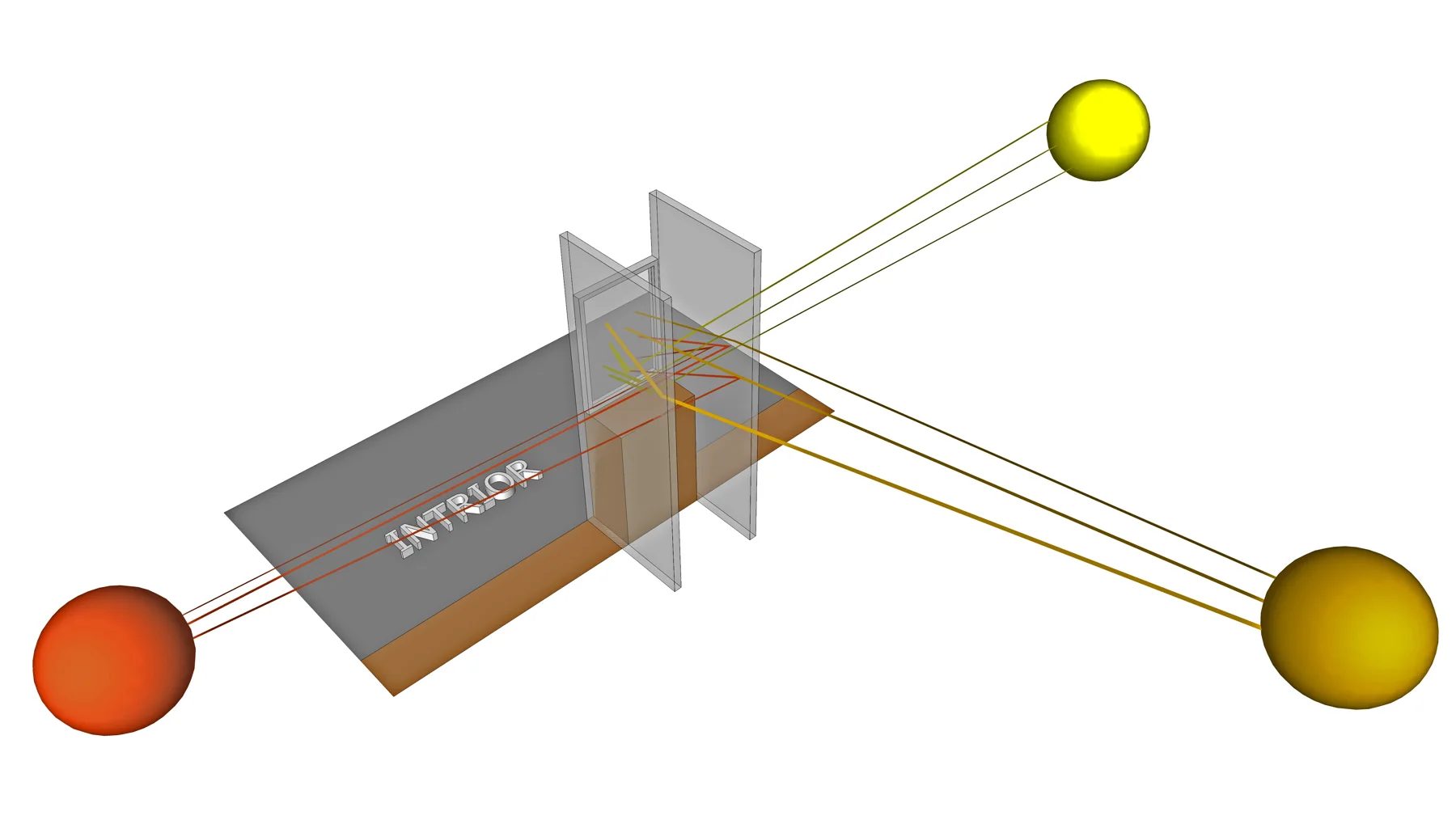

Solar control

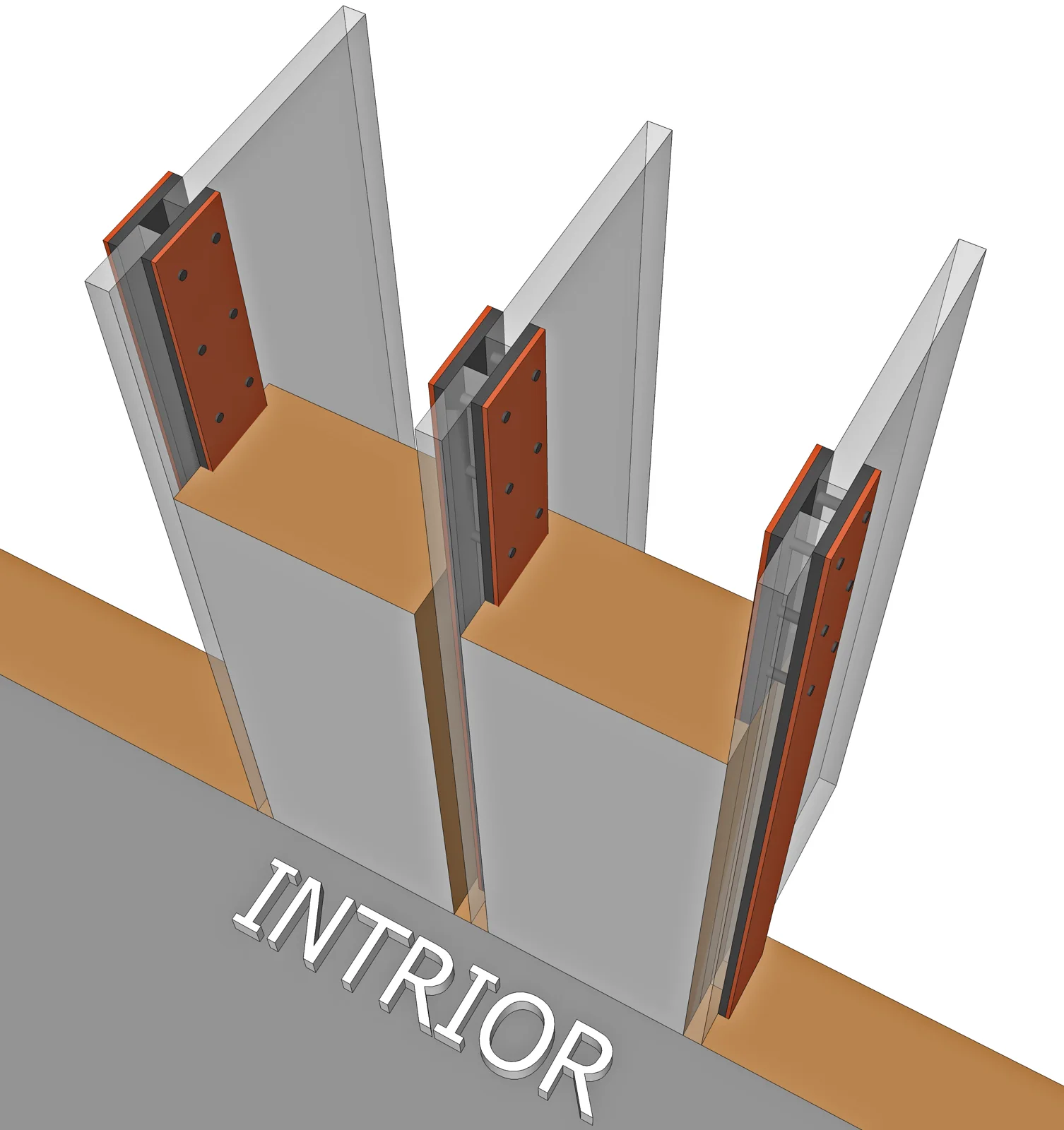

Facade assembly

Plans and spatial organisation

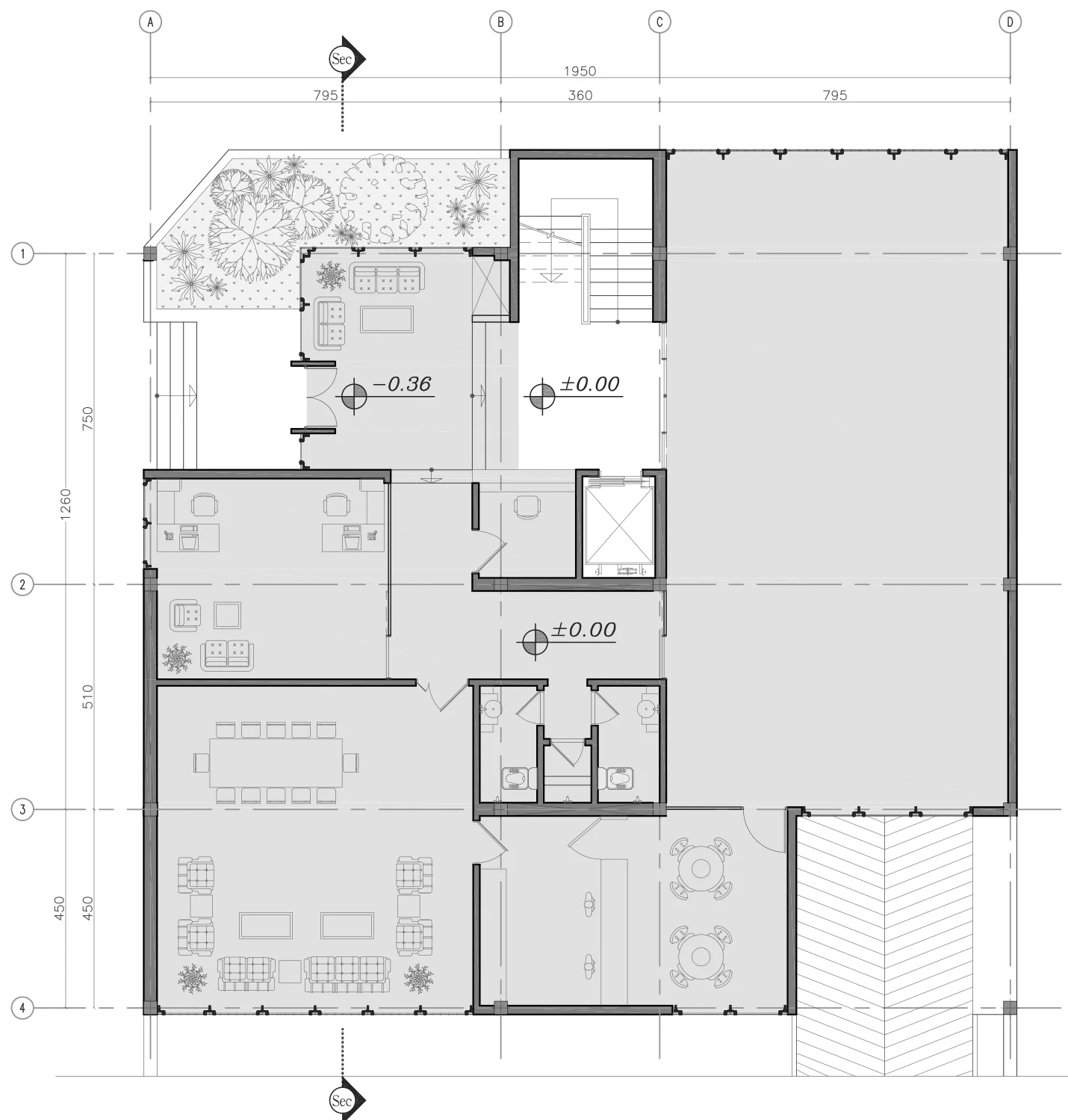

Floor plan — level 0

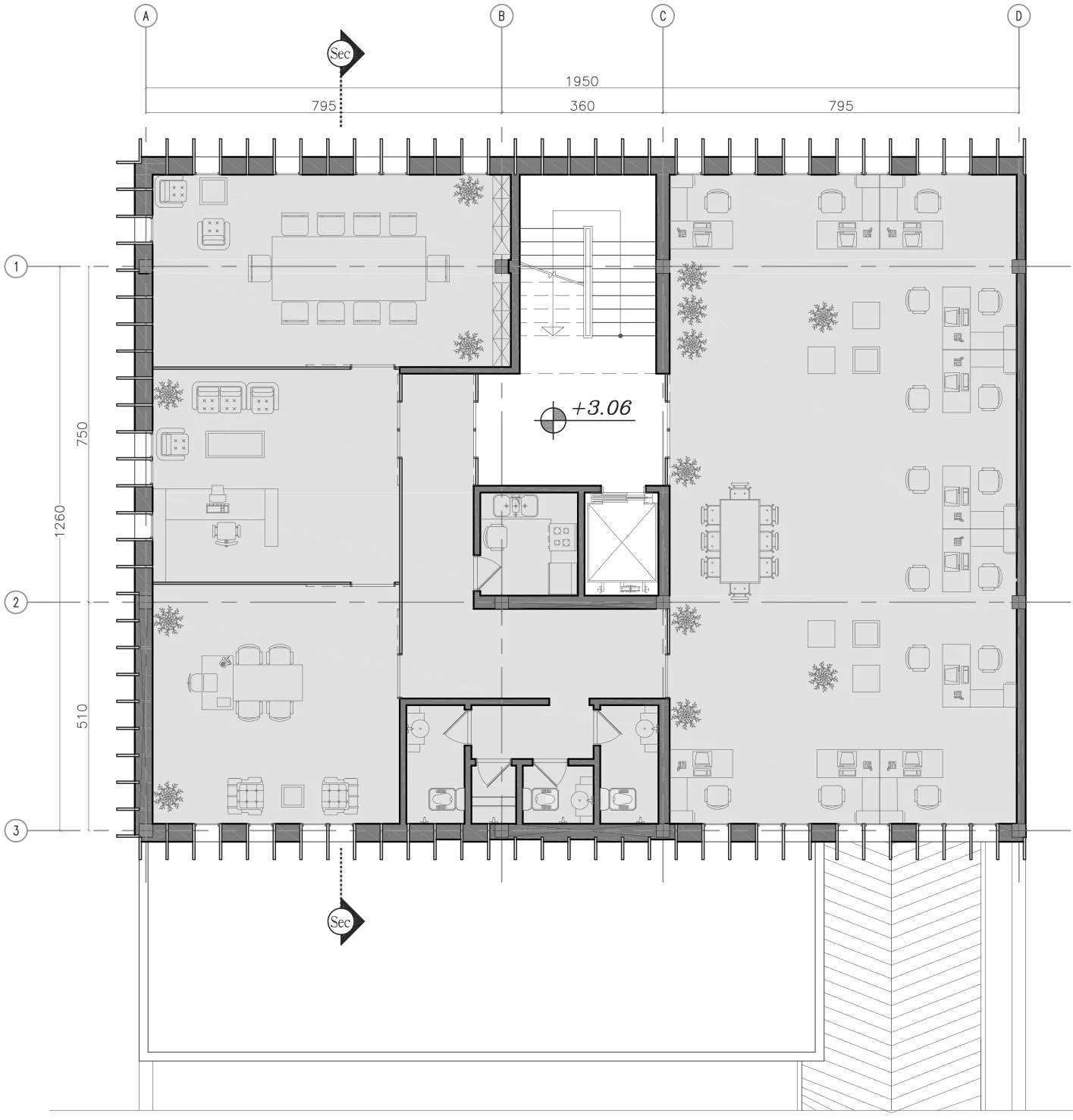

Floor plan — level 1

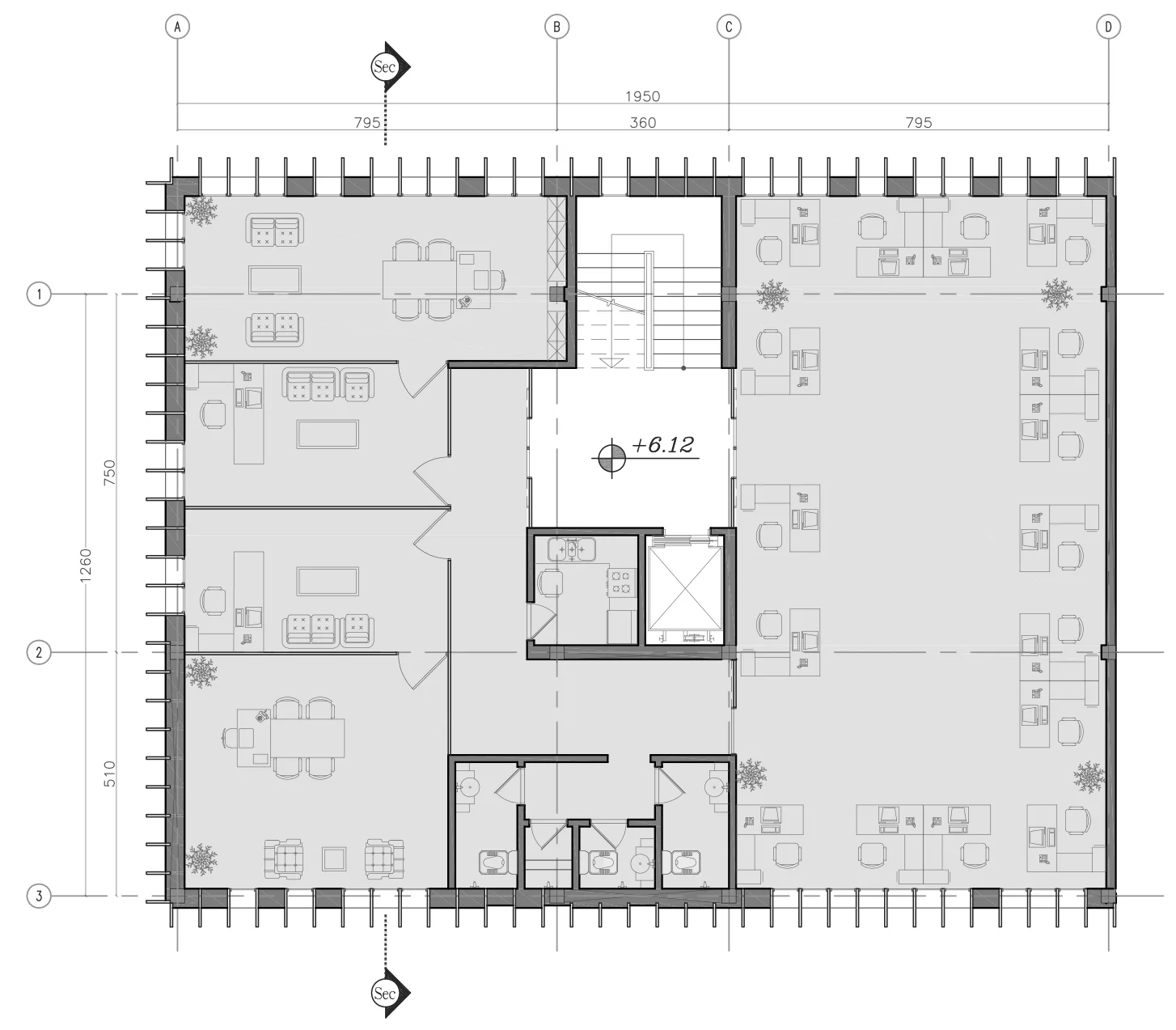

Floor plan — level 2

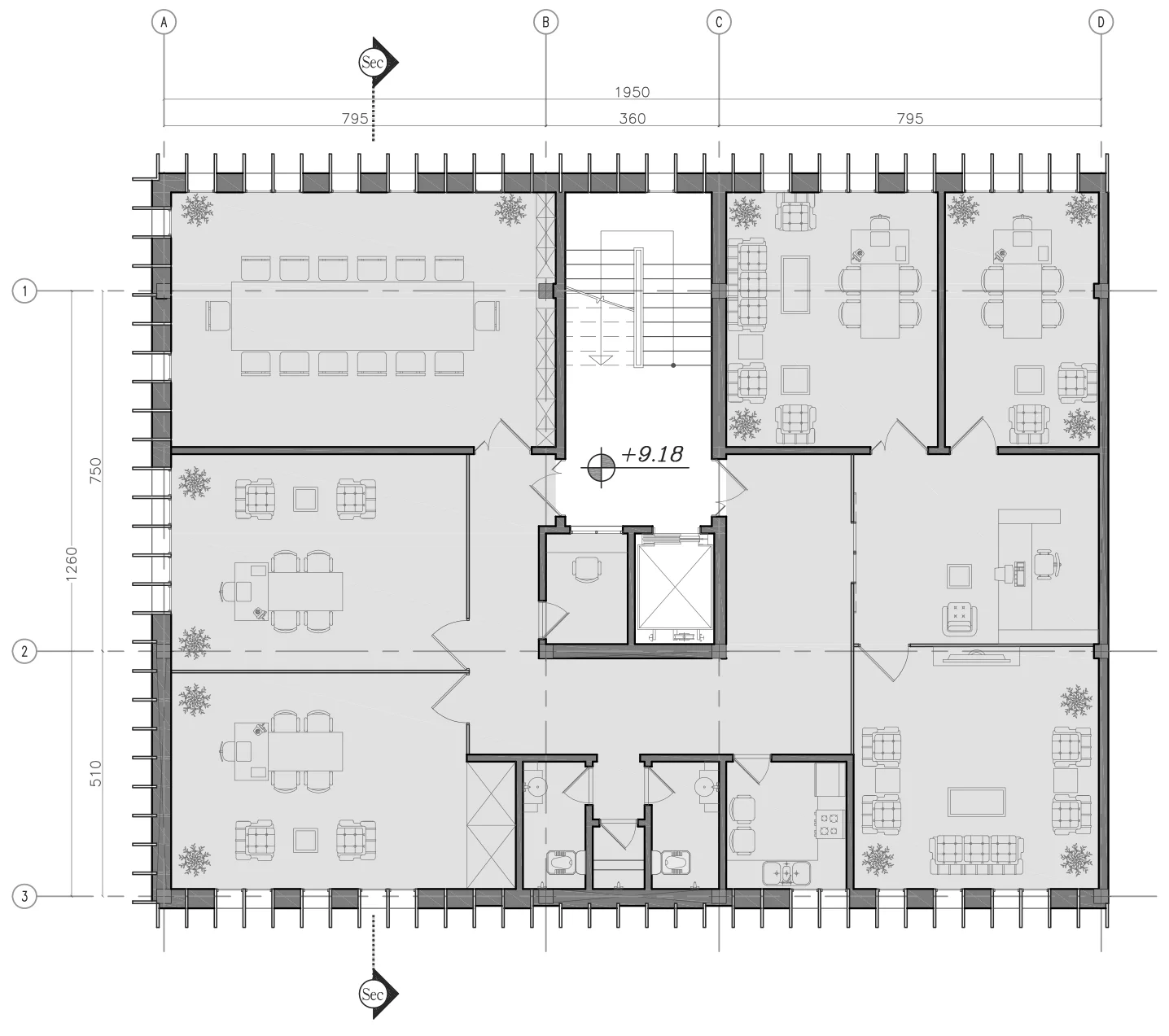

Floor plan — level 3

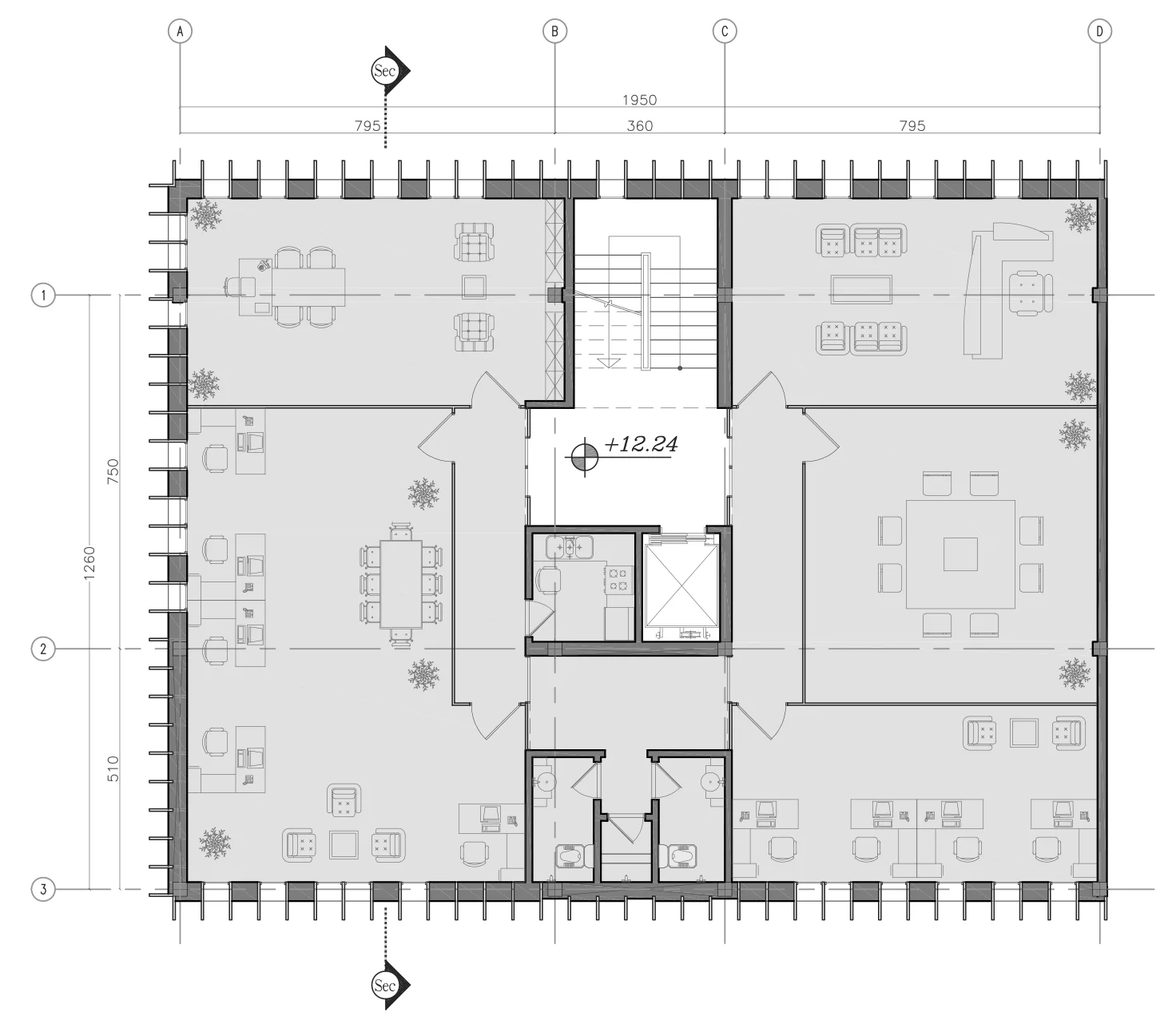

Floor plan — level 4

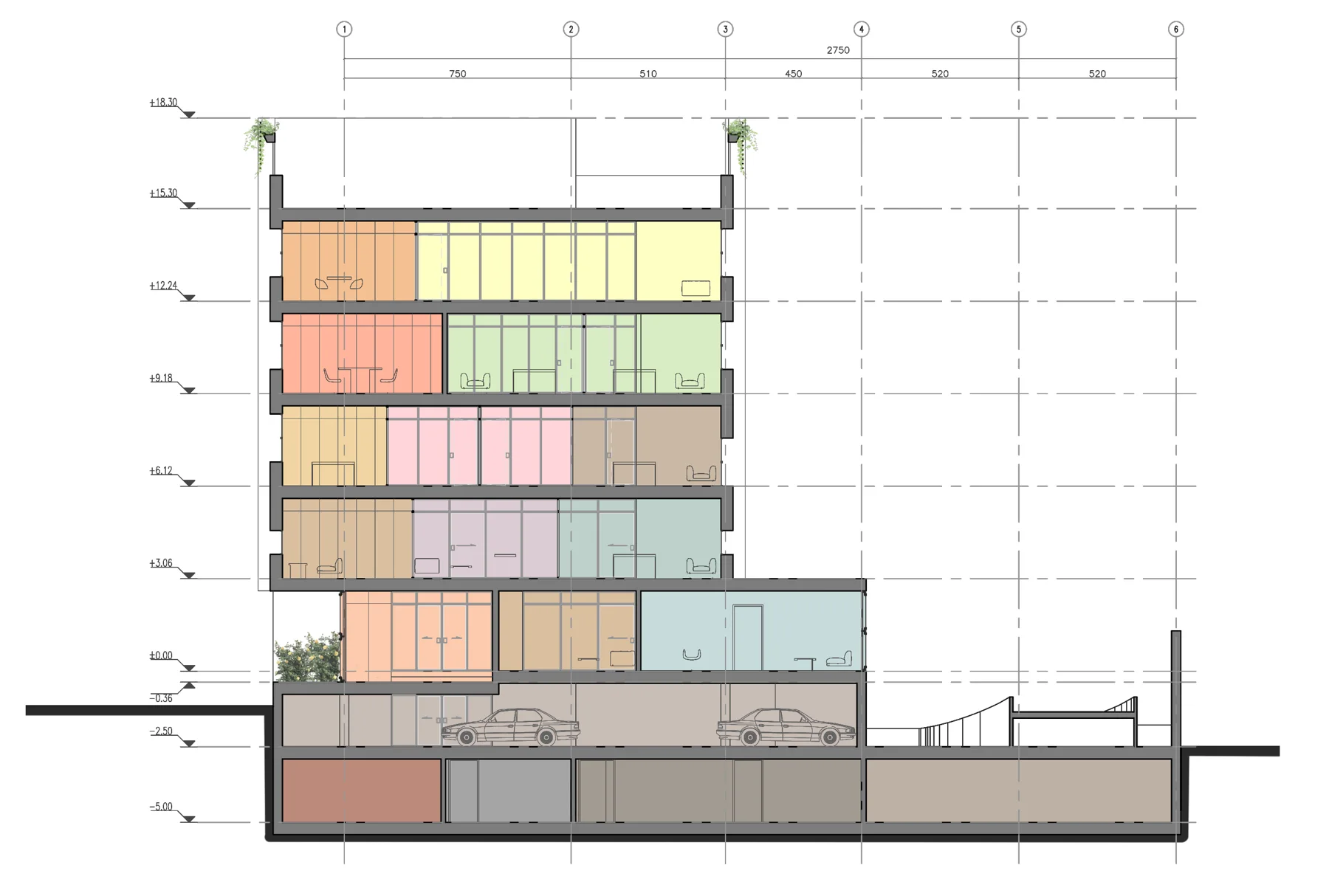

Building section
North elevation: vertical glass elements and openings
West elevation: façade rhythm

Furniture studies

Dimensioned study of a desk and matching side units

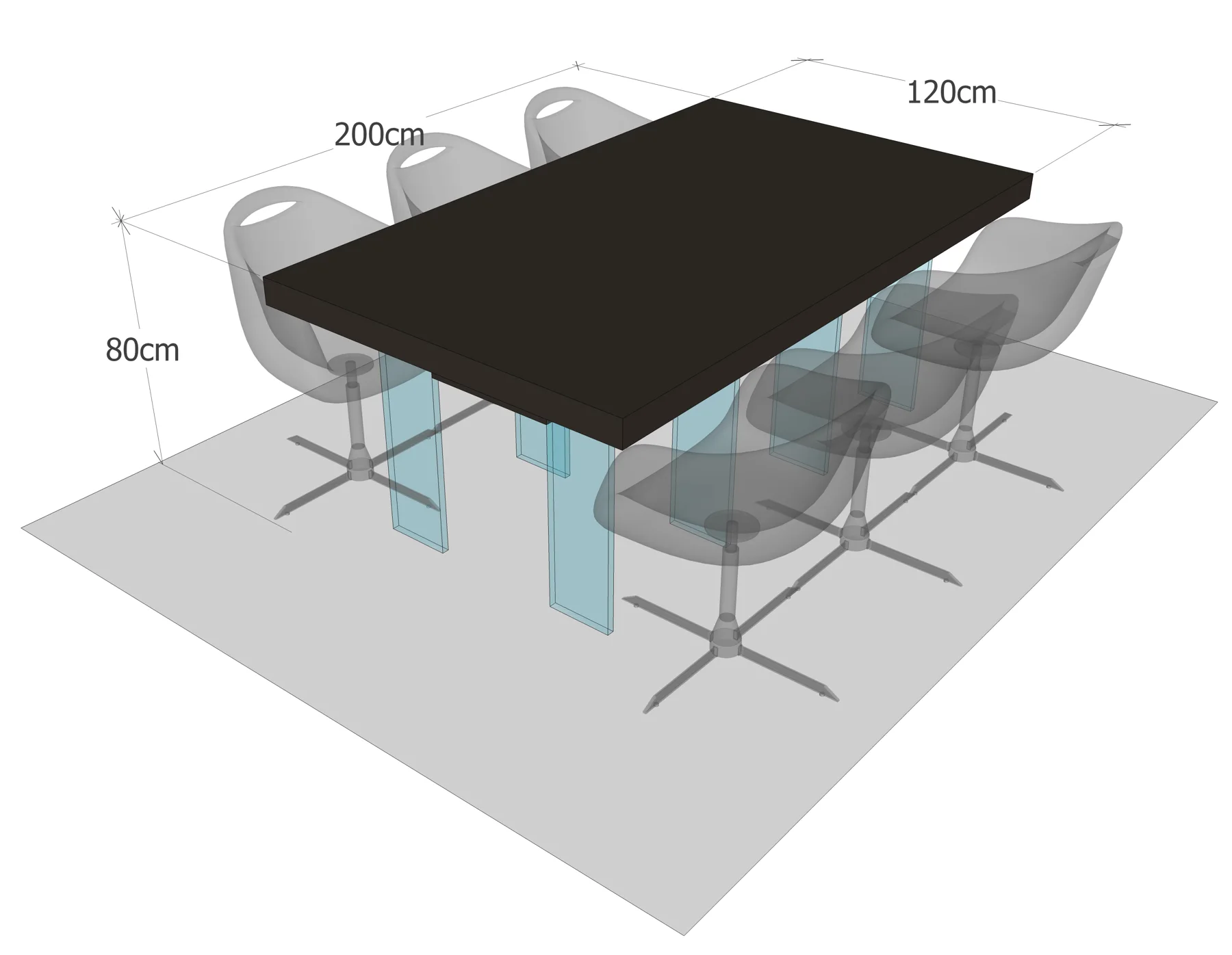

Meeting-table design with glass supports

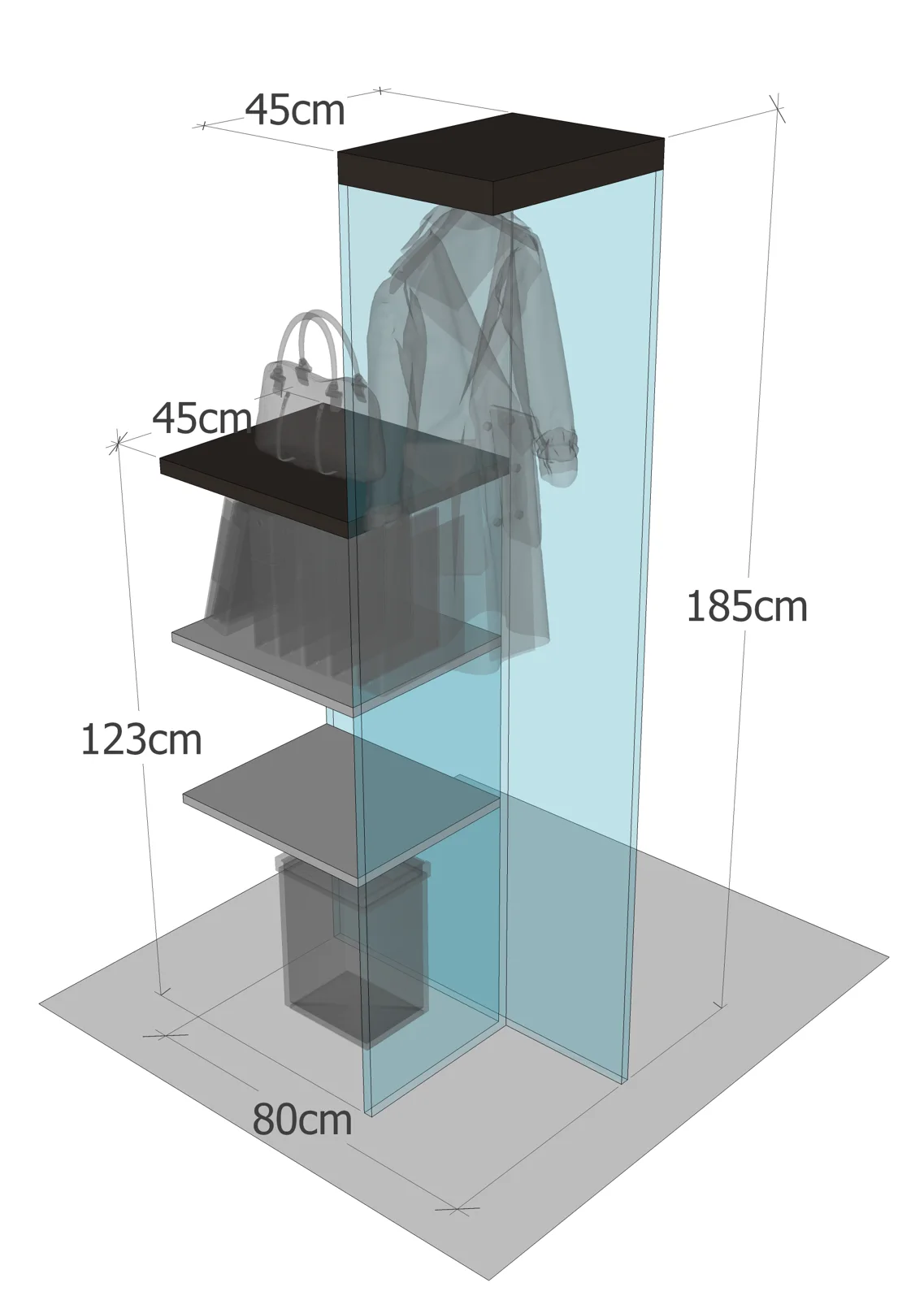

Freestanding coat and storage unit study

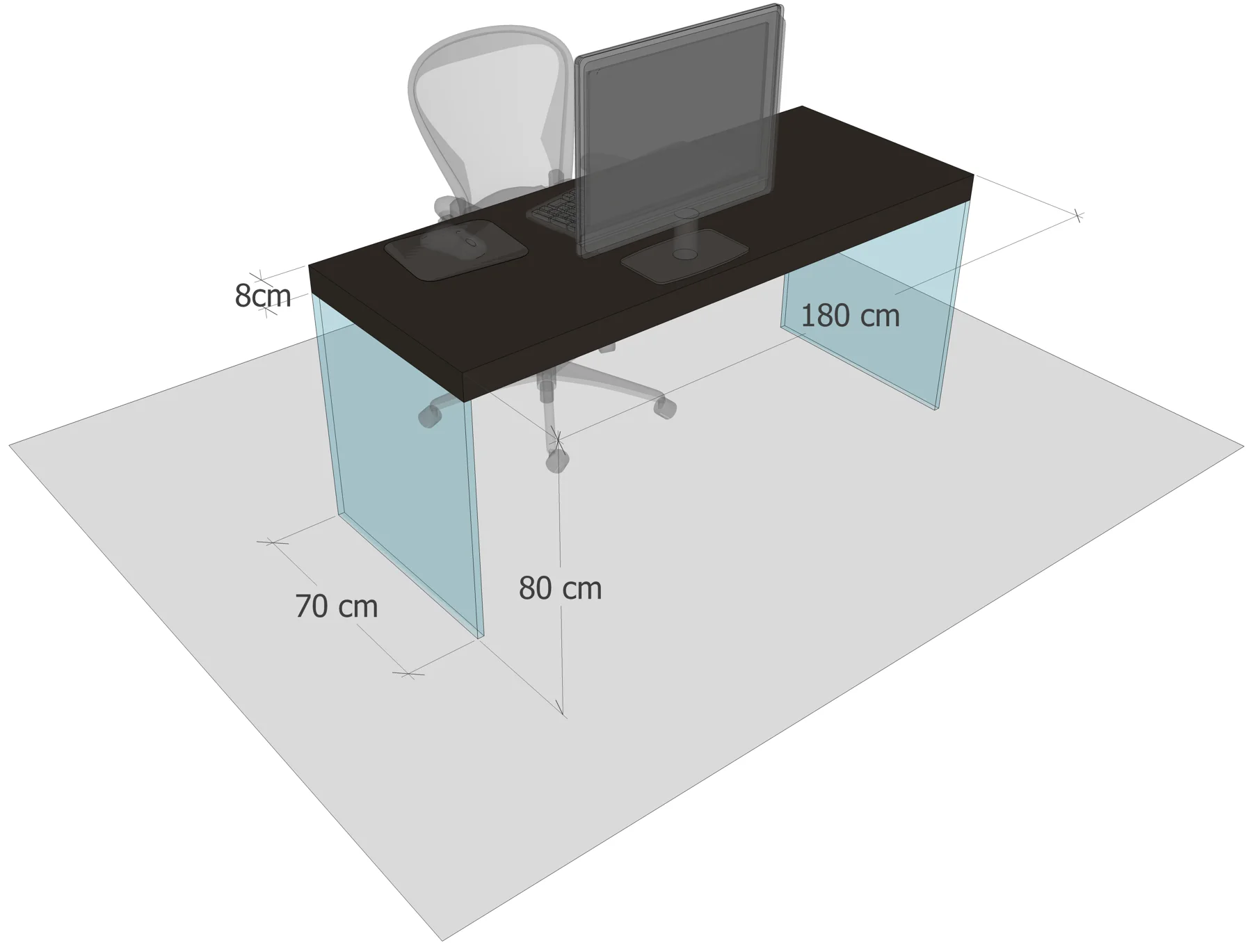

Dimensioned workstation with glass side supports
